Two weights are suspended from a steel wire as shown in Figure 1. Ignoring the self-weight of the wire, calculate the ma

[answerhappygod]

Two Weights Are Suspended From A Steel Wire As Shown In Figure 1 Ignoring The Self Weight Of The Wire Calculate The Ma 1 (27.98 KiB) Viewed 11 times

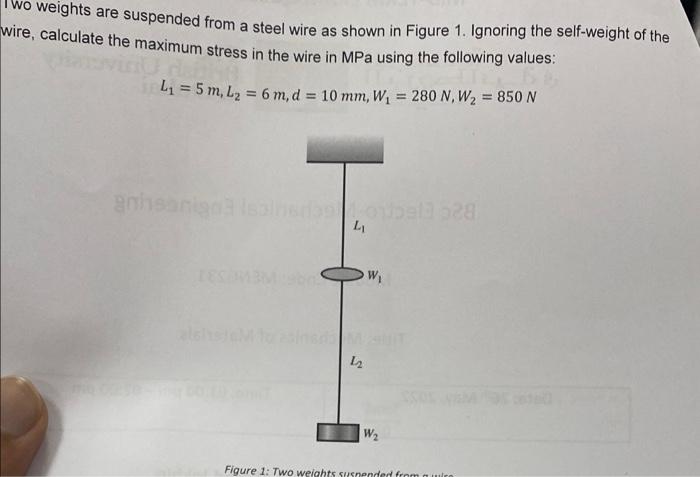

Two weights are suspended from a steel wire as shown in Figure 1. Ignoring the self-weight of the wire, calculate the maximum stress in the wire in MPa using the following values: L₁ = 5 m, L₂ = 6 m, d = 10 mm, W₁ = 280 N, W₂ = 850 N anhsaniga Isalherbe, obeta 528 L W₂ Figure 1: Two weights suspended from a wire 12 W₁
