The rotary screen S is used to wash limestone. When empty it has a mass of 900 kg and a radius of gyration of KG = 1.75

[answerhappygod]

The Rotary Screen S Is Used To Wash Limestone When Empty It Has A Mass Of 900 Kg And A Radius Of Gyration Of Kg 1 75 1 (191.3 KiB) Viewed 18 times

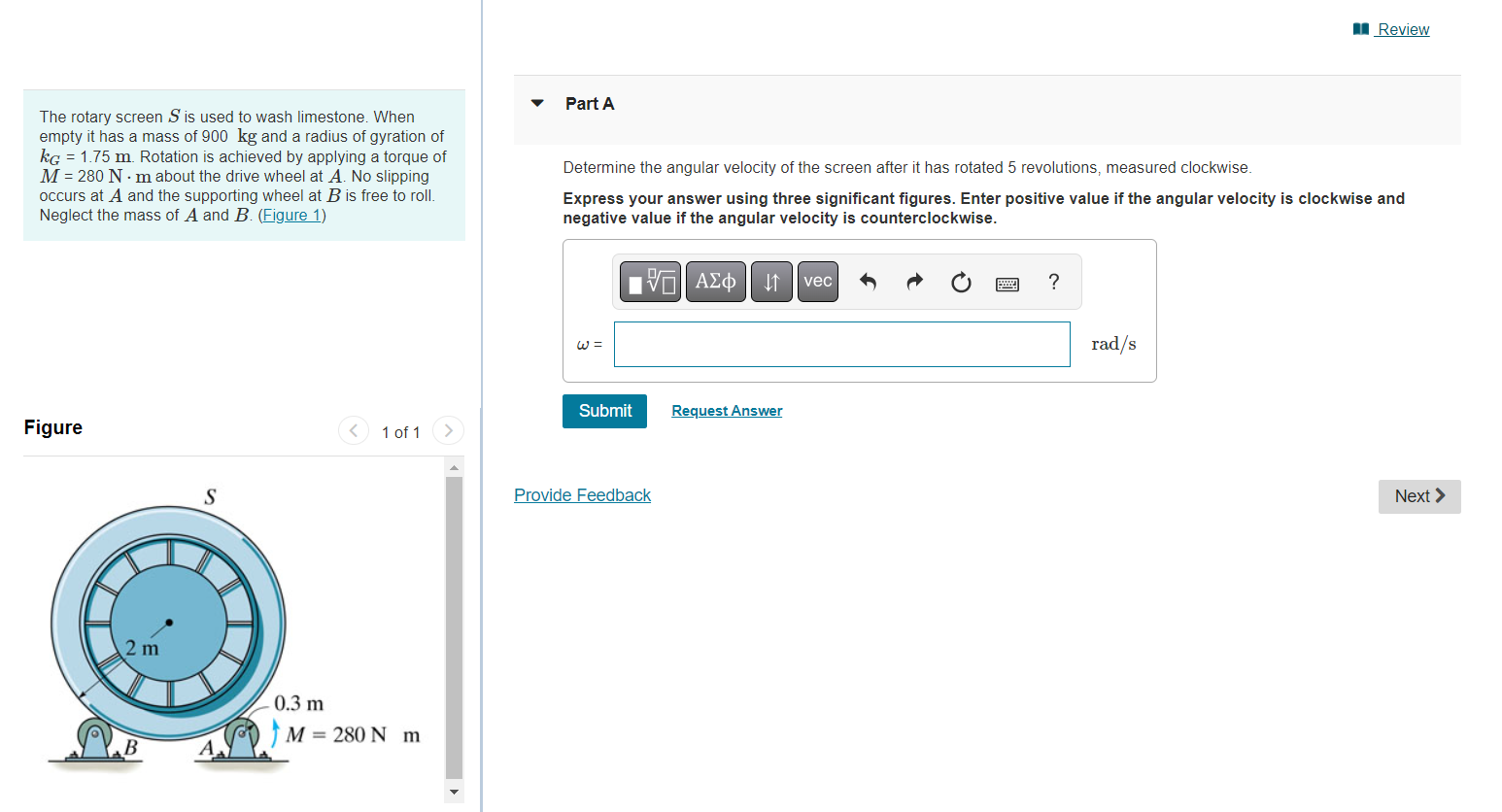

The rotary screen S is used to wash limestone. When empty it has a mass of 900 kg and a radius of gyration of KG = 1.75 m. Rotation is achieved by applying a torque of M = 280 Nm about the drive wheel at A. No slipping occurs at A and the supporting wheel at B is free to roll. Neglect the mass of A and B. (Figure 1) Figure < 1 of 1 S 0.3 m M280 N m Review Part A Determine the angular velocity of the screen after it has rotated 5 revolutions, measured clockwise. Express your answer using three significant figures. Enter positive value if the angular velocity is clockwise and negative value if the angular velocity is counterclockwise. 15. ΑΣΦ ↓↑ vec ? rad/s Request Answer Next > = لا Submit Provide Feedback
