Question 1 Not yet answered Marked out of 20.00 Flag question For the mechanism shown, the crank AB rotates uniformly cl

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 1 Not yet answered Marked out of 20.00 Flag question For the mechanism shown, the crank AB rotates uniformly cl

Post by answerhappygod »

Question 1 Not Yet Answered Marked Out Of 20 00 Flag Question For The Mechanism Shown The Crank Ab Rotates Uniformly Cl 1
Question 1 Not Yet Answered Marked Out Of 20 00 Flag Question For The Mechanism Shown The Crank Ab Rotates Uniformly Cl 1 (23.74 KiB) Viewed 8 times

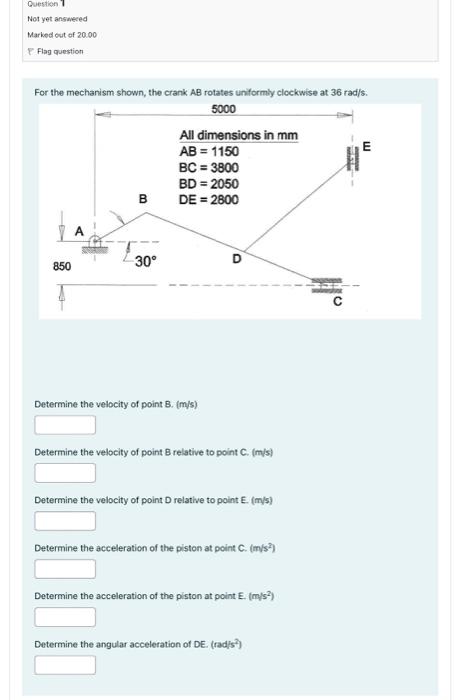

Question 1 Not yet answered Marked out of 20.00 Flag question For the mechanism shown, the crank AB rotates uniformly clockwise at 36 rad/s. 5000 All dimensions in mm AB = 1150 BC = 3800 BD = 2050 B DE = 2800 30° 850 Determine the velocity of point B. (m/s) Determine the velocity of point B relative to point C. (m/s) Determine the velocity of point D relative to point E. (m/s) Determine the acceleration of the piston at point C. (m/s²) Determine the acceleration of the piston at point E. (m/s²) Determine the angular acceleration of DE. (radis) O с Speege Hom m
