5.22 and 5.23 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal

Post by answerhappygod »

5 22 And 5 23 Draw The Shear And Bending Moment Diagrams For The Beam And Loading Shown And Determine The Maximum Normal 1
5 22 And 5 23 Draw The Shear And Bending Moment Diagrams For The Beam And Loading Shown And Determine The Maximum Normal 1 (20.36 KiB) Viewed 26 times

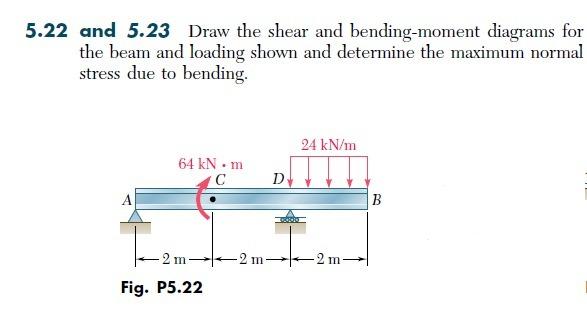

5.22 and 5.23 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending. 24 kN/m 64 kNm C -2 m2 m Fig. P5.22 D 2m- B
