30. In the scissor mechanism in the figure, point A moves to the right at constant speed v. Select the correct statement

Post by answerhappygod »

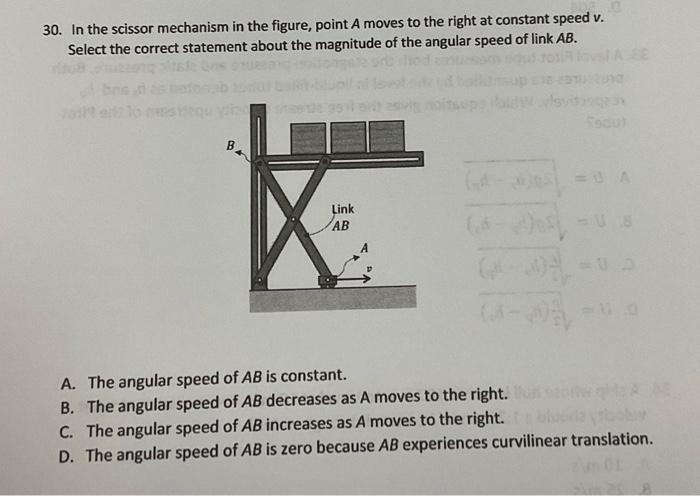

30 In The Scissor Mechanism In The Figure Point A Moves To The Right At Constant Speed V Select The Correct Statement 1
30 In The Scissor Mechanism In The Figure Point A Moves To The Right At Constant Speed V Select The Correct Statement 1 (38.65 KiB) Viewed 14 times
30. In the scissor mechanism in the figure, point A moves to the right at constant speed v. Select the correct statement about the magnitude of the angular speed of link AB. EE Link AB (4-²)) = 18 0 A. The angular speed of AB is constant. B. The angular speed of AB decreases as A moves to the right. C. The angular speed of AB increases as A moves to the right. D. The angular speed of AB is zero because AB experiences curvilinear translation. Sim 20
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
