1.5 m 800 mm Figure 1: Vehicle Question 2. [10] The vehicle shown in Figure 1 consist of a manual power transmission wit

[answerhappygod]

1 5 M 800 Mm Figure 1 Vehicle Question 2 10 The Vehicle Shown In Figure 1 Consist Of A Manual Power Transmission Wit 1 (28.91 KiB) Viewed 17 times

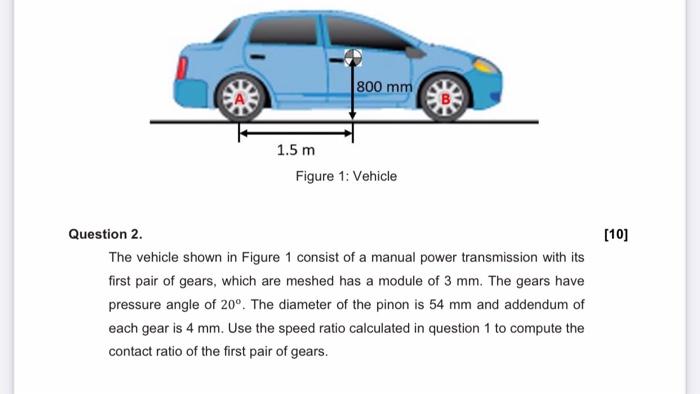

1.5 m 800 mm Figure 1: Vehicle Question 2. [10] The vehicle shown in Figure 1 consist of a manual power transmission with its first pair of gears, which are meshed has a module of 3 mm. The gears have pressure angle of 20°. The diameter of the pinon is 54 mm and addendum of each gear is 4 mm. Use the speed ratio calculated in question 1 to compute the contact ratio of the first pair of gears.
