1. DETERMINE THE MAXIMUM TENSILE STRESS
2. DETERMINE THE MAXIMUM COMPRESSIVE STRESS
3. DETERMINE THE SHEAR STRESS

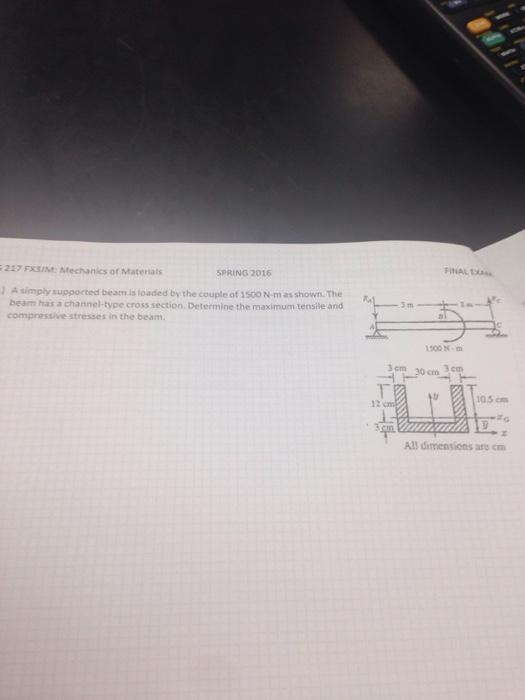

217 FX3IM: Mechanics of Materials SPRING 2016 A simply supported beam is loaded by the couple of 1500 N-m as shown. The beam has a channel-type cross section. Determine the maximum tensile compressive stresses in the beam. and 3m 3cm 12 cm 3 cm FINAL EX al 3cm 30 cm 10.5 cm # All dimensions are cm
