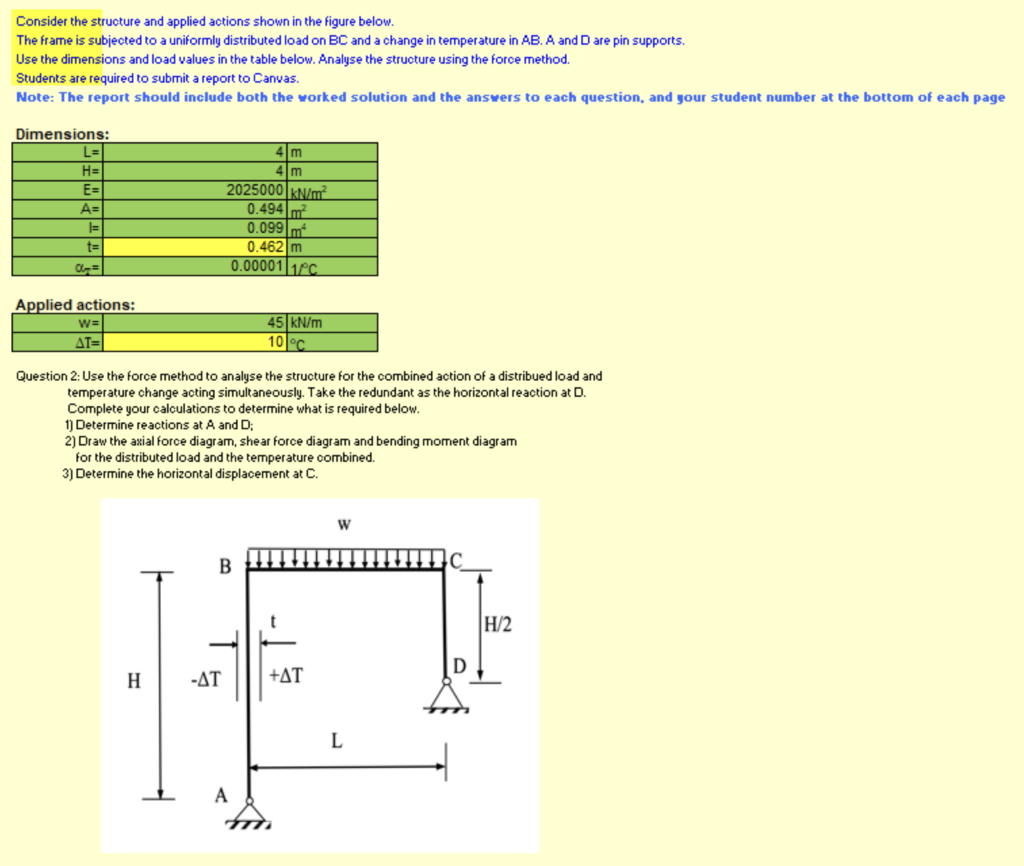

Consider the structure and applied actions shown in the figure below. The frame is subjected to a uniformly distributed

[answerhappygod]

Consider The Structure And Applied Actions Shown In The Figure Below The Frame Is Subjected To A Uniformly Distributed 1 (152.44 KiB) Viewed 14 times

Consider the structure and applied actions shown in the figure below. The frame is subjected to a uniformly distributed load on BC and a change in temperature in AB. A and D are pin supports. Use the dimensions and load values in the table below. Analyse the structure using the force method. Students are required to submit a report to Canvas. Note: The report should include both the worked solution and the answers to each question, and your student number at the bottom of each page Dimensions: L= m H= m E= 2025000 kN/m² A= 0.494 m² |= 0.099 m t= 0.462 m 0.00001 1/C Applied actions: W= 45 kN/m 10 °C AT= Question 2: Use the force method to analyse the structure for the combined action of a distribued load and temperature change acting simultaneously. Take the redundant as the horizontal reaction at D. Complete your calculations to determine what is required below. 1) Determine reactions at A and D; 2) Draw the axial force diagram, shear force diagram and bending moment diagram for the distributed load and the temperature combined. 3) Determine the horizontal displacement at C. W B H/2 H -AT +AT L
