Design a column for the support with a largest reaction force. Use fc' = 21 MPa, fy=414 MPa, Ast = 0.02Ag. please solve

Post by answerhappygod »

Design a column for the support with a largest reaction force. Use fc' = 21 MPa, fy=414 MPa, Ast = 0.02Ag.
Design A Column For The Support With A Largest Reaction Force Use Fc 21 Mpa Fy 414 Mpa Ast 0 02ag Please Solve 1
Design A Column For The Support With A Largest Reaction Force Use Fc 21 Mpa Fy 414 Mpa Ast 0 02ag Please Solve 1 (20.28 KiB) Viewed 13 times
please solve in a clear solution

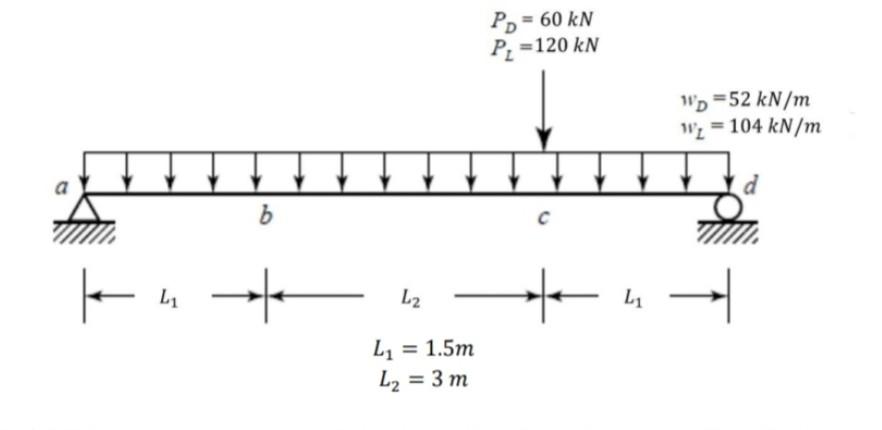

← L₁ b + L2 L₁ = 1.5m L₂ = 3 m PD = 60 kN P₁ =120 kN C + L₁ → WD=52 kN/m W₂ = 104 kN/m
