Check for the adequacy of 350 mm x 575 mm beam with f'c = 28 mm and has a one layer of tension reinforcement of 3-32 mm

[answerhappygod]

Check for the adequacy of 350 mm x 575 mm beam with f'c = 28 mm and has a one layer of tension reinforcement of 3-32 mm with fy = 414 MPa.

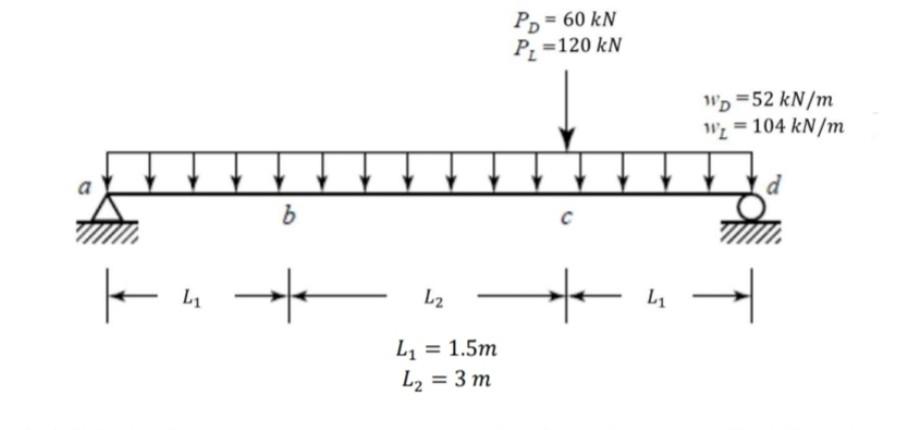

Check For The Adequacy Of 350 Mm X 575 Mm Beam With F C 28 Mm And Has A One Layer Of Tension Reinforcement Of 3 32 Mm 1 (20.31 KiB) Viewed 15 times

Please help in a clear solution thanks
← L₁ b + L2 L₁ = 1.5m L₂ = 3 m PD = 60 kN P₁ = 120 kN C + L₁ WD=52 kN/m W₂ = 104 kN/m ➜
