A net levelling is performed for an area (120m*60m) with dimensions of (30m.40m). The observed levels are given in the f

[answerhappygod]

A Net Levelling Is Performed For An Area 120m 60m With Dimensions Of 30m 40m The Observed Levels Are Given In The F 1 (30.15 KiB) Viewed 13 times

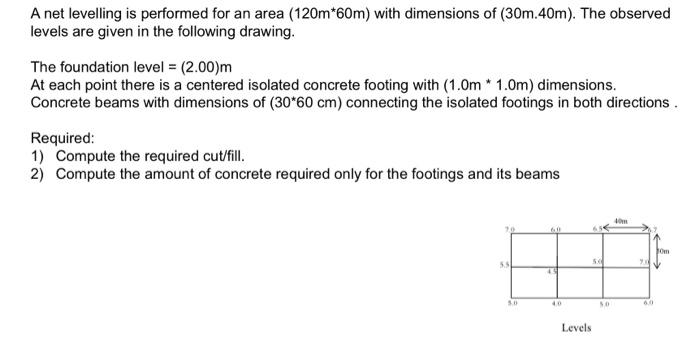

A net levelling is performed for an area (120m*60m) with dimensions of (30m.40m). The observed levels are given in the following drawing. The foundation level = (2.00)m At each point there is a centered isolated concrete footing with (1.0m * 1.0m) dimensions. Concrete beams with dimensions of (30*60 cm) connecting the isolated footings in both directions. Required: 1) Compute the required cut/fill. 2) Compute the amount of concrete required only for the footings and its beams 40m 60 5.5 5.0 43 40 50 Levels 5.0 6.0 10m
