Q4 Determine the global matrix of truss shown in Figure Q2 by using Stiffness Method. Each member of this truss consists

Post by answerhappygod »

Q4 Determine The Global Matrix Of Truss Shown In Figure Q2 By Using Stiffness Method Each Member Of This Truss Consists 1
Q4 Determine The Global Matrix Of Truss Shown In Figure Q2 By Using Stiffness Method Each Member Of This Truss Consists 1 (95.39 KiB) Viewed 11 times

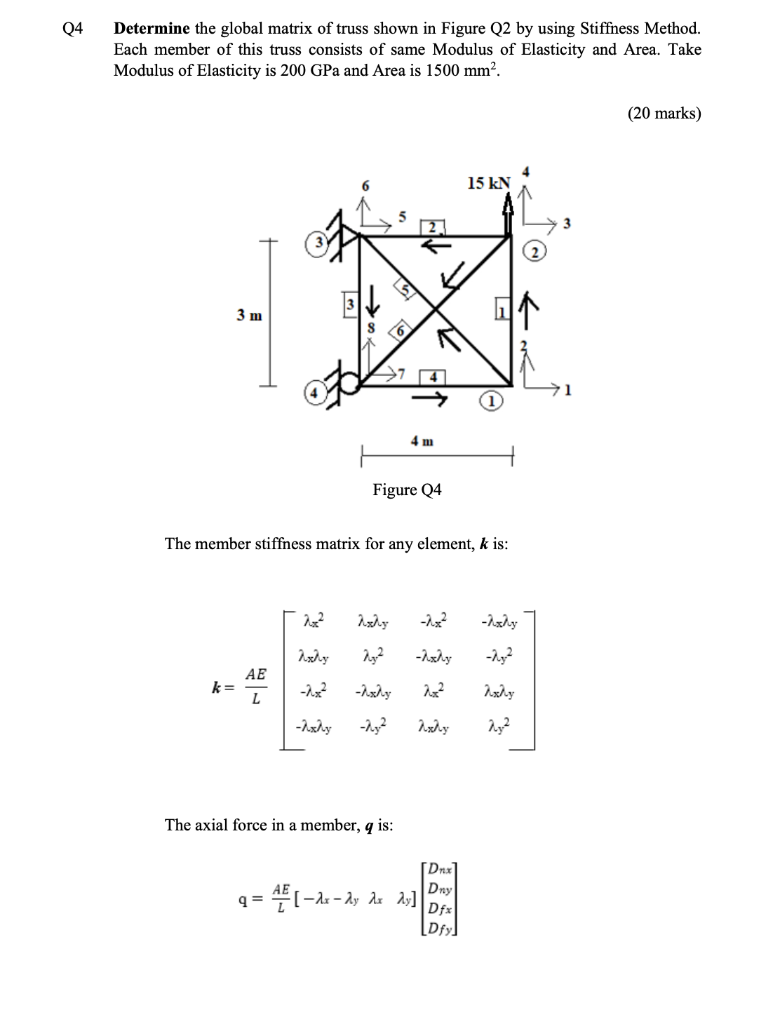

Q4 Determine the global matrix of truss shown in Figure Q2 by using Stiffness Method. Each member of this truss consists of same Modulus of Elasticity and Area. Take Modulus of Elasticity is 200 GPa and Area is 1500 mm². (20 marks) 4 15 kN 3 m 4 m Figure Q4 The member stiffness matrix for any element, k is: 2x² Axhy -λx² - поду nachy 2₂.-² -hachy -2₂-² k= -2x² -hxchy nohy -ashy -2₂² 2₂² The axial force in a member, q is: q=¹[-Ax-Ay Ax Ay] AE L ܐܐ Andy [Dnx] Day Dfx Dfy]
