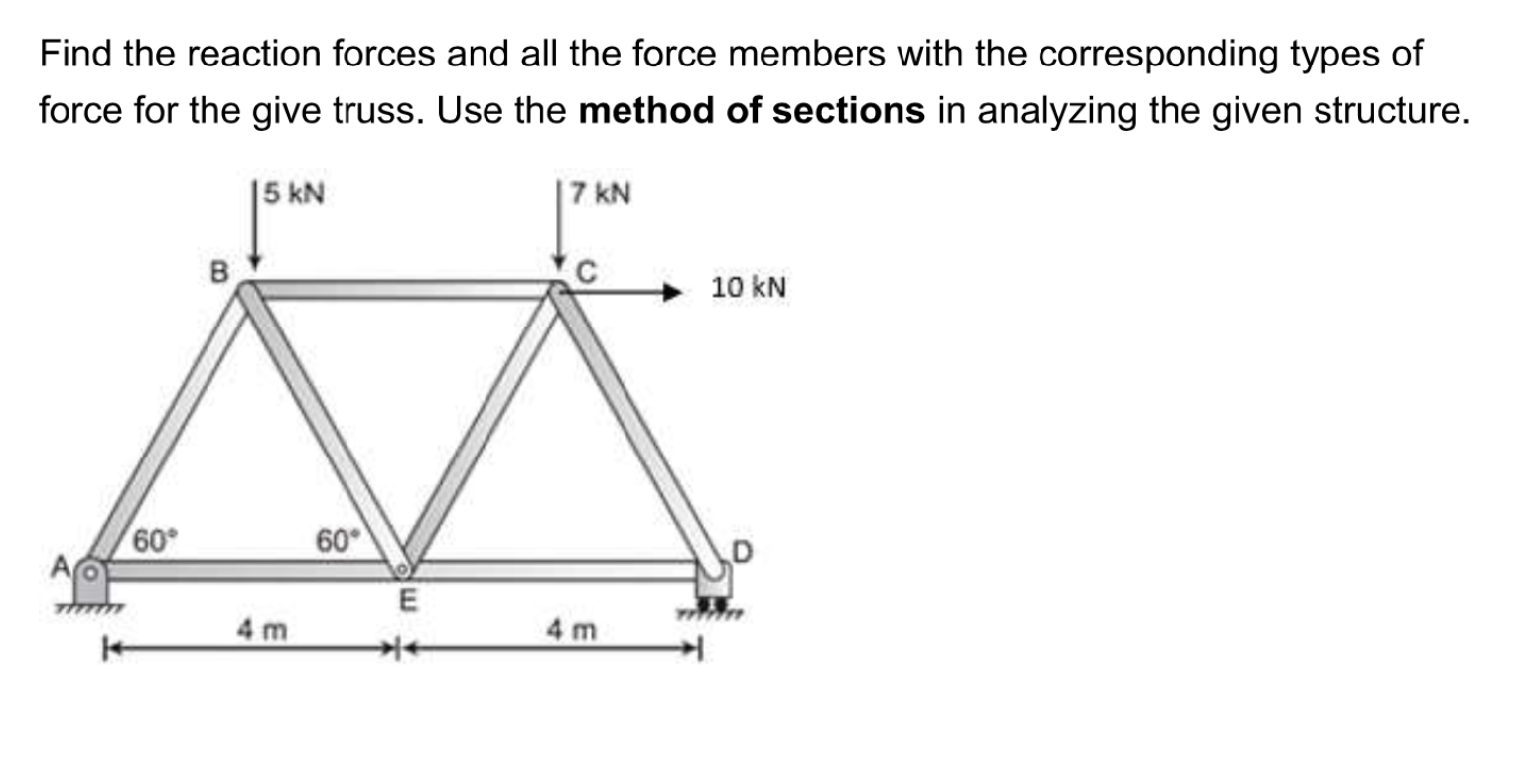

Find the reaction forces and all the force members with the corresponding types of force for the give truss. Use the method of sections in analyzing the given structure. 15 kN 7 kN B C 10 kN M 60° 60 E 4 m 4 m
Table of Answers to Question 1 MAGNITUDE, KN REACTIONS/ FORCE MEMBERS Reaction at A (horizontal) Reaction at A (vertical) Reaction at D AB AE BC BE CE DE CD TYPE OF FORCE
