Question 2. 45° 90° The figure shows a classic strain gauge rosette that can measure the strain in three direction. Give

Post by answerhappygod »

Question 2 45 90 The Figure Shows A Classic Strain Gauge Rosette That Can Measure The Strain In Three Direction Give 1
Question 2 45 90 The Figure Shows A Classic Strain Gauge Rosette That Can Measure The Strain In Three Direction Give 1 (23.94 KiB) Viewed 16 times

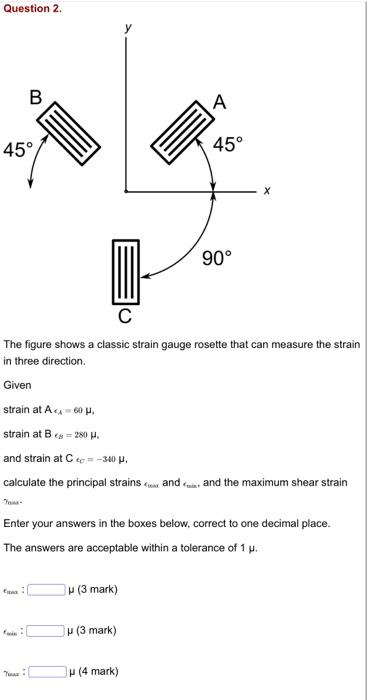

Question 2. 45° 90° The figure shows a classic strain gauge rosette that can measure the strain in three direction. Given strain at A<- 60 μ. strain at B-280 μ. and strain at C-340 μ. calculate the principal strains and and the maximum shear strain Enter your answers in the boxes below, correct to one decimal place. The answers are acceptable within a tolerance of 1 μ. E μ (3 mark) Cain : u (3 mark) Year: μ (4 mark) A 45° X
