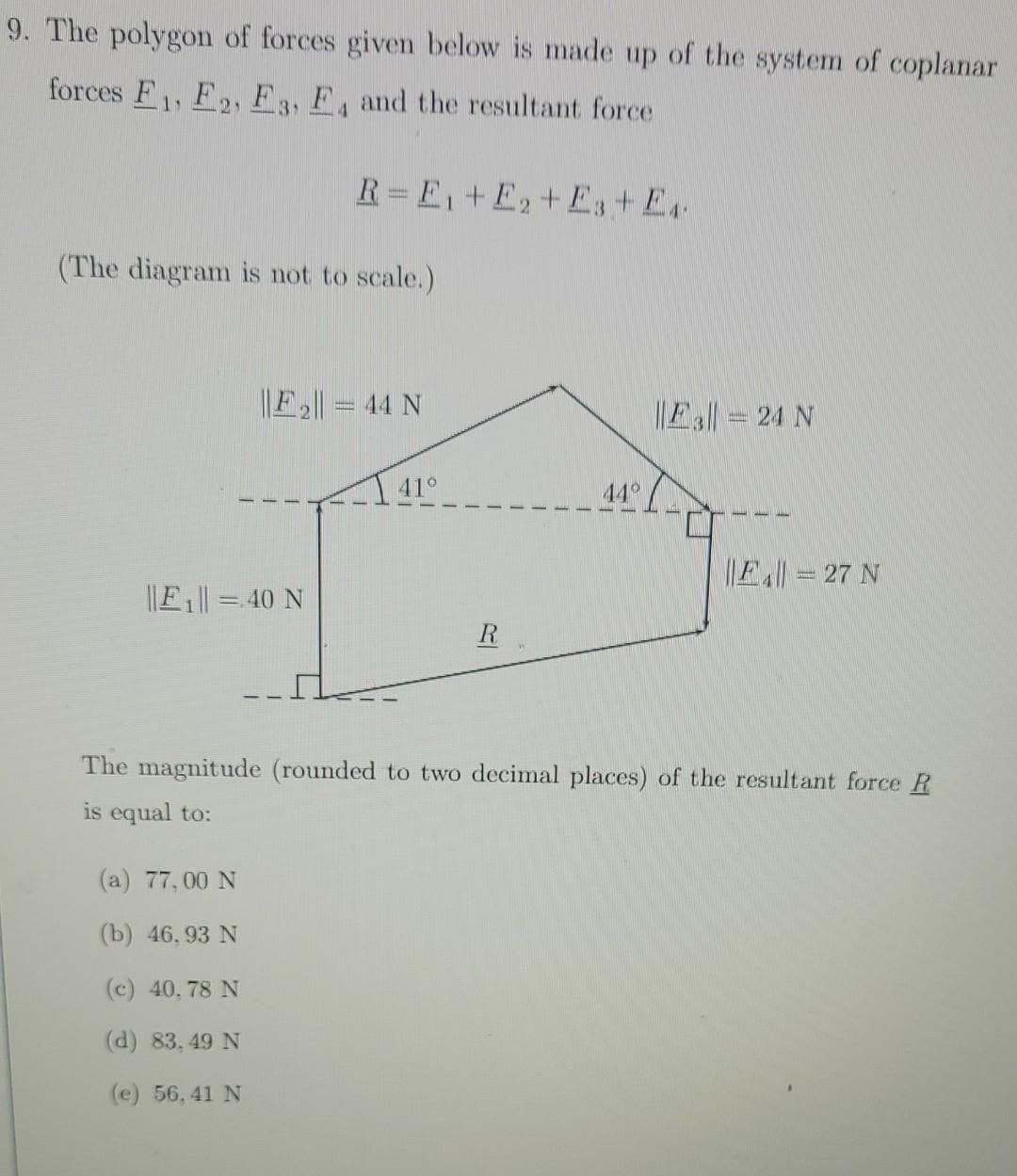

9. The polygon of forces given below is made up of the system of coplanar forces F1, F2, F3, F4 and the resultant force

[answerhappygod]

9 The Polygon Of Forces Given Below Is Made Up Of The System Of Coplanar Forces F1 F2 F3 F4 And The Resultant Force 1 (111.34 KiB) Viewed 23 times

9. The polygon of forces given below is made up of the system of coplanar forces F1, F2, F3, F4 and the resultant force R=E₁ + E₂ +Es+ E4. (The diagram is not to scale.) ||F₂|| = 44 N 41° ||F3|| = 24 N ||₁|| = 27 N ||E₁|| = 40 N R The magnitude (rounded to two decimal places) of the resultant force R is equal to: (a) 77,00 N (b) 46,93 N (c) 40,78 N (d) 83, 49 N (e) 56, 41 N
