3. An ideal Rankine cycle with reheat uses water as the working fluid. The conditions at the inlet to the first-stage tu

[answerhappygod]

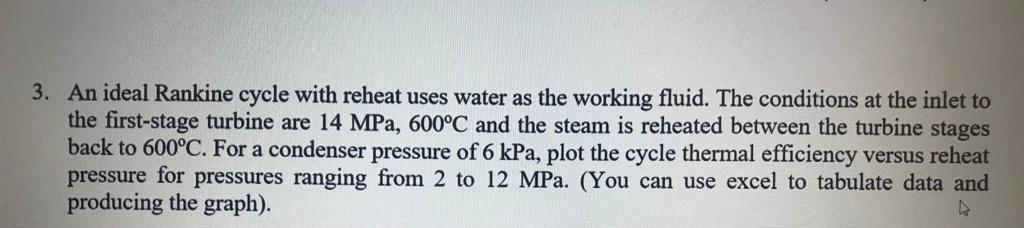

3 An Ideal Rankine Cycle With Reheat Uses Water As The Working Fluid The Conditions At The Inlet To The First Stage Tu 1 (40.62 KiB) Viewed 13 times

3. An ideal Rankine cycle with reheat uses water as the working fluid. The conditions at the inlet to the first-stage turbine are 14 MPa, 600°C and the steam is reheated between the turbine stages back to 600°C. For a condenser pressure of 6 kPa, plot the cycle thermal efficiency versus reheat pressure for pressures ranging from 2 to 12 MPa. (You can use excel to tabulate data and producing the graph). k
