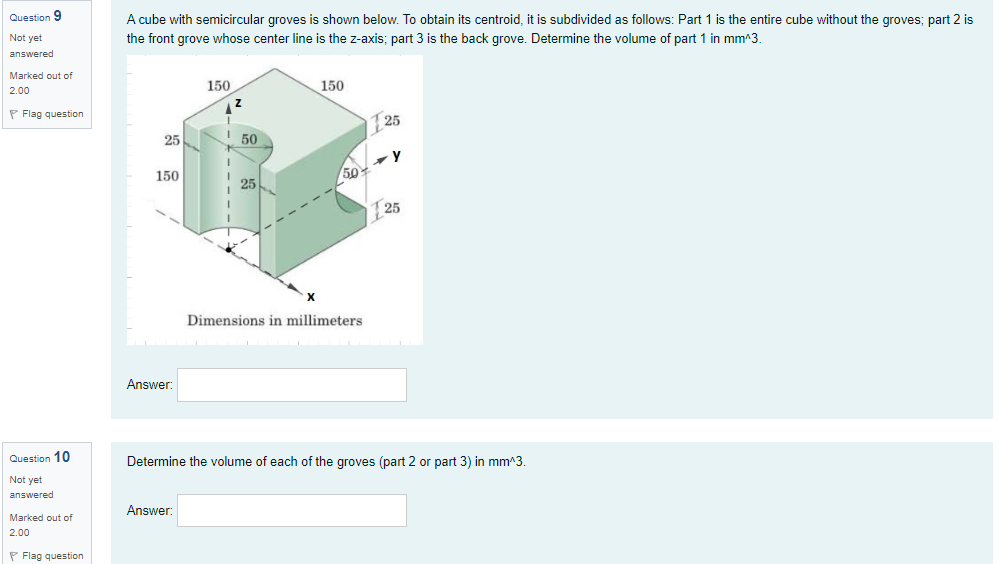

Question 9 Not yet answered Marked out of 2.00 P Flag question Question 10 Not yet answered Marked out of 2.00 P Flag question A cube with semicircular groves is shown below. To obtain its centroid, it is subdivided as follows: Part 1 is the entire cube without the groves; part 2 is the front grove whose center line is the z-axis; part 3 is the back grove. Determine the volume of part 1 in mm^3. 150 150 ² 25 25 Y 150 50 25 Dimensions in millimeters I Answer: Determine the volume of each of the Answer: 50 25 (part 2 or part 3) in mm^3.
Question 11 Not yet answered Marked out of 2.00 P Flag question Question 12 Not yet answered Marked out of 3.00 Flag question Question 13 Not yet answered Marked out of 1.00 P Flag question Determine the y-centroid of part 2 in mm. Answer: Determine the y-centroid of part 3 in mm. Answer: Determine the x-centroid of the composite body in mm. Answer:

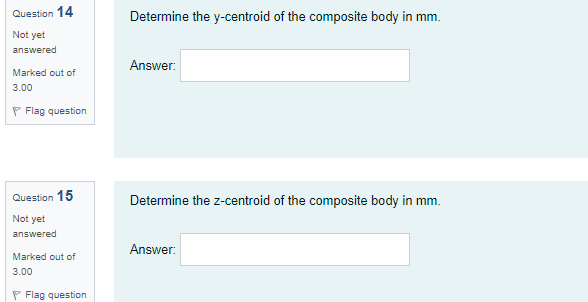

Question 14 Not yet answered Marked out of 3.00 Flag question Question 15 Not yet answered Marked out of 3.00 P Flag question Determine the y-centroid of the composite body in mm. Answer: Determine the z-centroid of the composite body in mm. Answer:

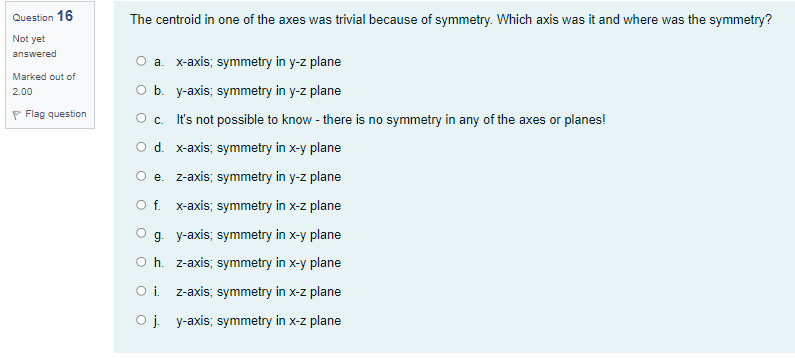

Question 16 Not yet answered Marked out of 2.00 P Flag question The centroid in one of the axes was trivial because of symmetry. Which axis was it and where was the symmetry? O a. x-axis; symmetry in y-z plane O b. y-axis; symmetry in y-z plane O c. It's not possible to know there is no symmetry in any of the axes or planes! O d. x-axis; symmetry in x-y plane e. z-axis; symmetry in y-z plane x-axis; symmetry in x-z plane g. y-axis; symmetry in x-y plane Oh. z-axis; symmetry in x-y plane Oi z-axis; symmetry in x-z plane O j. y-axis; symmetry in x-z plane O f.
