Size The Motor N M For The Mechanism Shown To Keep It In The Kinematic State Shown M 0 50 Kg Ig 0 10 Kg M Og 0 50 1 (544.7 KiB) Viewed 17 times
Write equation of position analysis, velocity analysis, acceleration analysis, force analysis

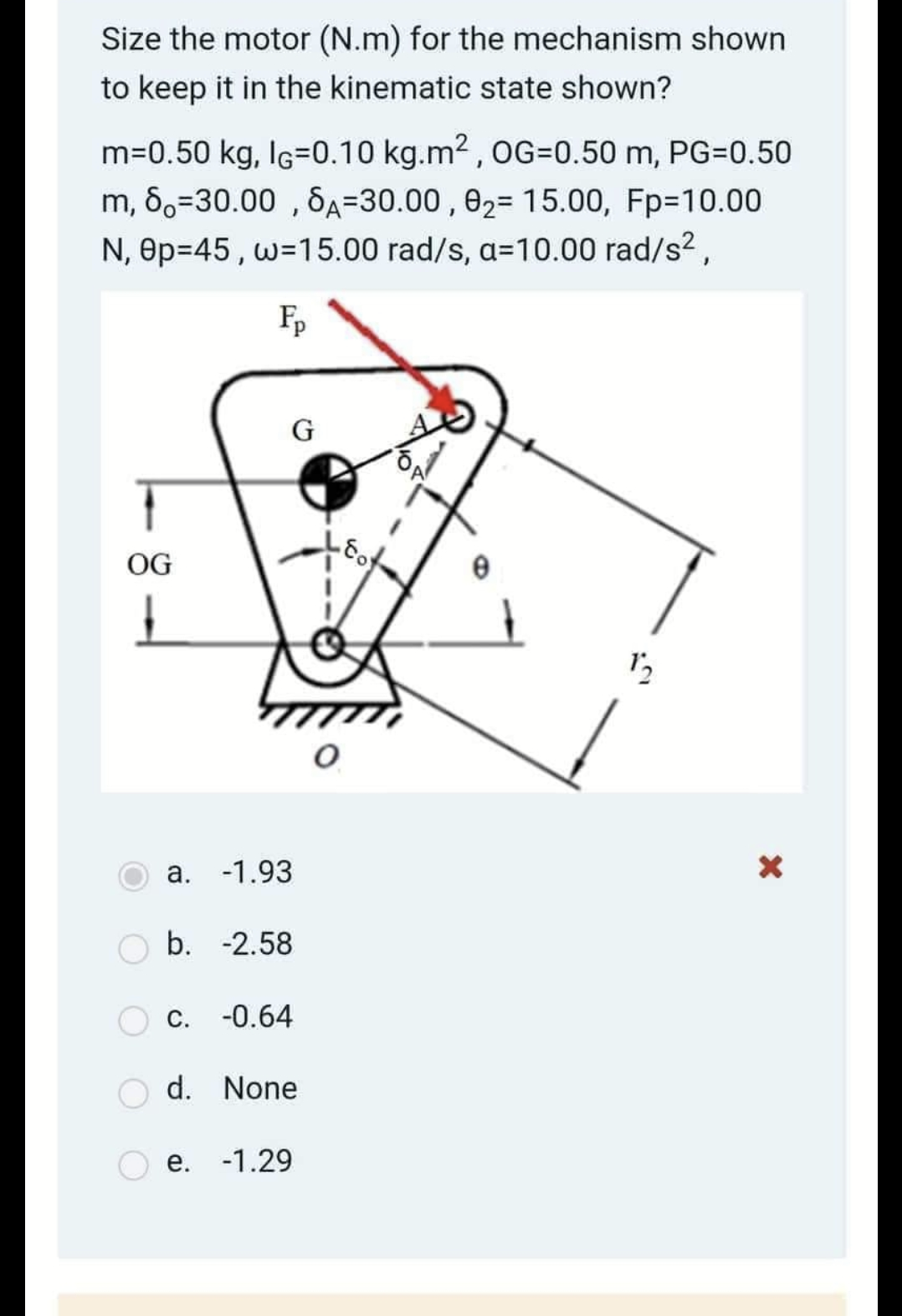

Size the motor (N.m) for the mechanism shown to keep it in the kinematic state shown? m=0.50 kg, IG=0.10 kg.m², OG=0.50 m, PG=0.50 m, 8-30.00, SA-30.00, 0₂= 15.00, Fp=10.00 N, 0p=45, w=15.00 rad/s, a=10.00 rad/s², Fp OG 0 G a. -1.93 b. -2.58 C. -0.64 d. None e. -1.29 -Cot O 12 X
