Exercise 4 For the fixed-bias common emitter configuration of Figure 2 below, determine IB, IC, VCE, Vc, VCB and VB. +16

[answerhappygod]

Exercise 4 For The Fixed Bias Common Emitter Configuration Of Figure 2 Below Determine Ib Ic Vce Vc Vcb And Vb 16 1 (76.31 KiB) Viewed 14 times

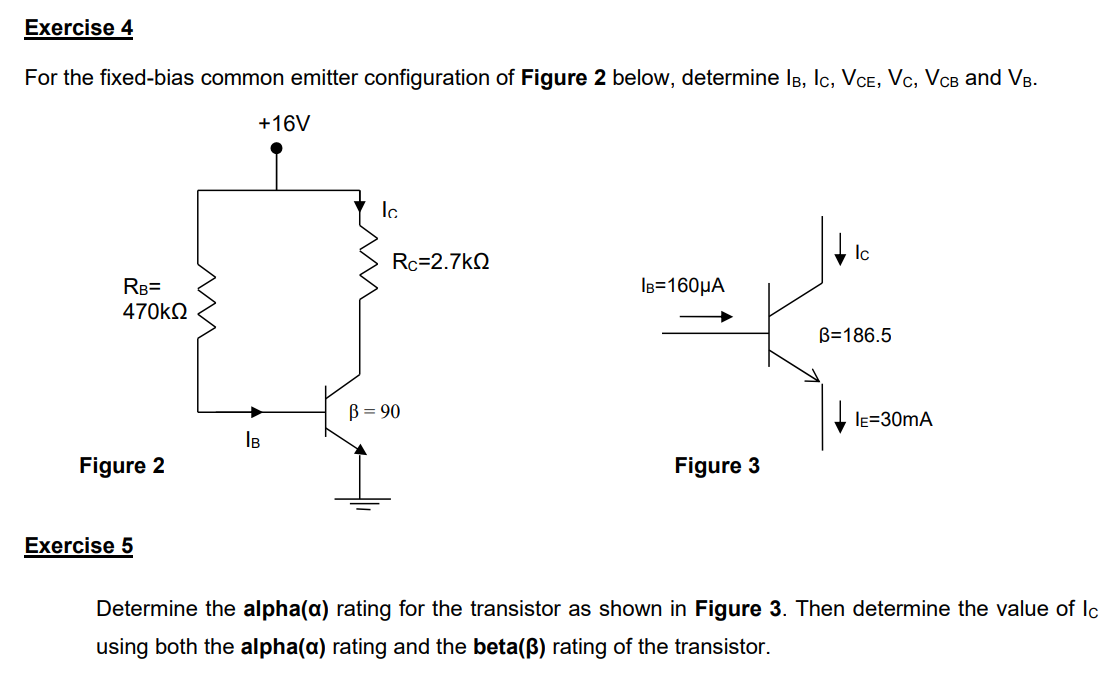

Exercise 4 For the fixed-bias common emitter configuration of Figure 2 below, determine IB, IC, VCE, Vc, VCB and VB. +16V Ic Rc=2.7kQ IB=160μA RB= 470ΚΩ B=186.5 B = 90 IE=30mA Ів Figure 3 Exercise 5 Determine the alpha(a) rating for the transistor as shown in Figure 3. Then determine the value of Ic using both the alpha(a) rating and the beta(ß) rating of the transistor. Figure 2
