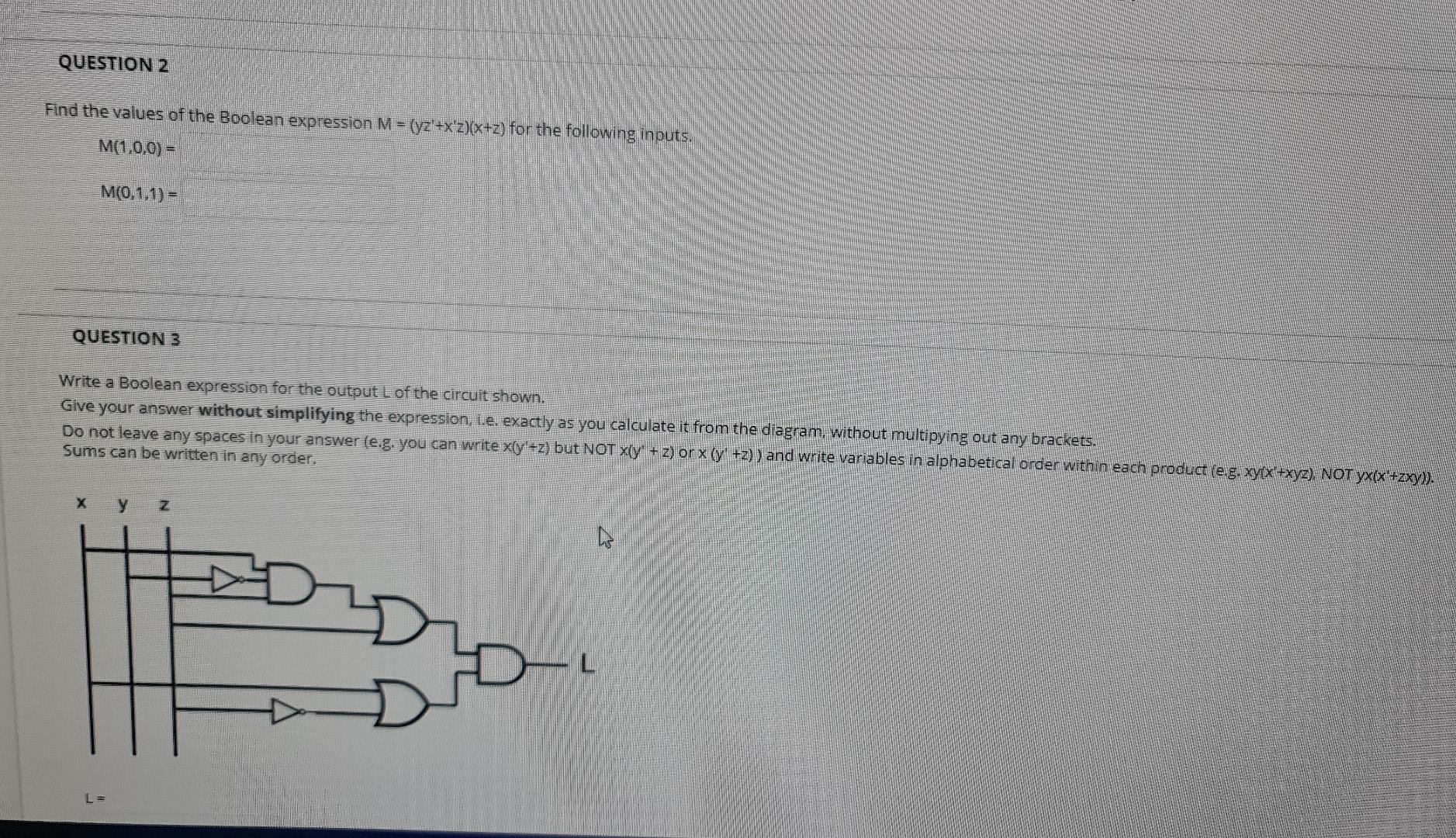

QUESTION 2 Find the values of the Boolean expression M = (yz'+x'z)(x+z) for the following inputs. M(1,0,0)= M(0,1,1)= QUESTION 3 Write a Boolean expression for the output L of the circuit shown. Give your answer without simplifying the expression, L.e. exactly as you calculate it from the diagram, without multipying out any brackets. Do not leave any spaces in your answer (e.g. you can write x(y¹+z) but NOT x(y +z) orx (y +z)) and write variables in alphabetical order within each product (e.g. xy(x+xyz). NOT yx(x+zxy)). Sums can be written in any order. X y Z Dy
