Figure illustrates a "Table assembly" which will require an additional 4 Brackets to attach the "Leg assembly" to the "T

Post by answerhappygod »

Figure Illustrates A Table Assembly Which Will Require An Additional 4 Brackets To Attach The Leg Assembly To The T 1
Figure Illustrates A Table Assembly Which Will Require An Additional 4 Brackets To Attach The Leg Assembly To The T 1 (32.73 KiB) Viewed 18 times

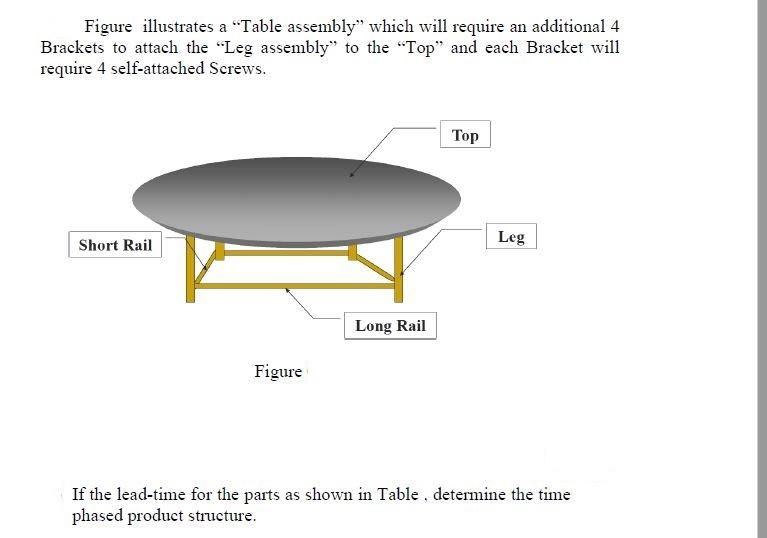

Figure illustrates a "Table assembly" which will require an additional 4 Brackets to attach the "Leg assembly" to the "Top" and each Bracket will require 4 self-attached Screws. Top Short Rail Long Rail Figure If the lead-time for the parts as shown in Table, determine the time phased product structure. Leg
Table Lead Time (days) Table assembly 2 Top 1 Leg assembly 3 Short Rail 1 E Long Rail 2 F Leg 1 G Bracket 2 H Screws 1 If a customer requires 50 "Tables Assembly", determine the detail BOM list. Symbol Parts name A B C D
