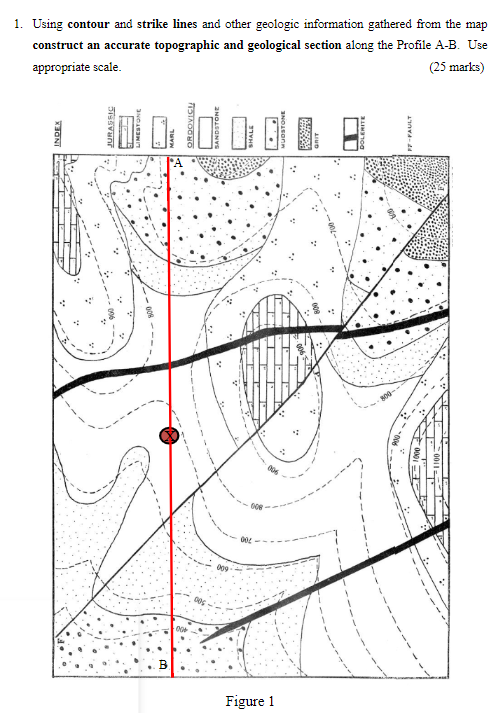

1. Using contour and strike lines and other geologic information gathered from the map construct an accurate topographic and geological section along the Profile A-B. Use appropriate scale. (25 marks) A B 005 002 006 Figure 1 FT-FAULT
2. Assuming that the deposition is normal and the beds are not overturned; show the sequence of deposition (strata ONLY with the oldest bed at the bottom). Which are the oldest and youngest beds? (5 marks) 3. Determine the layers involved and its thickness if the borehole is drill thru point ? (6 marks) 4. List and describe the type of geological events and show and sketch the evidence? (4 marks)
5. With the aid of sketches, list briefly the geological history of the area covered by the map up to the present situation. (5 marks) 6. Based on the map below, describe the most important structure in the area. (5 marks) 1-000- metres 500 Figure 2 000 OOP
