An idealised box beam is shown. Thickness of all panels is 1 mm.
Assuming thin panels with negligible effects on the second moment
of areas, calculate shear flow distribution in all panels
An Idealised Box Beam Is Shown Thickness Of All Panels Is 1 Mm Assuming Thin Panels With Negligible Effects On The Sec 1 (34.37 KiB) Viewed 18 times

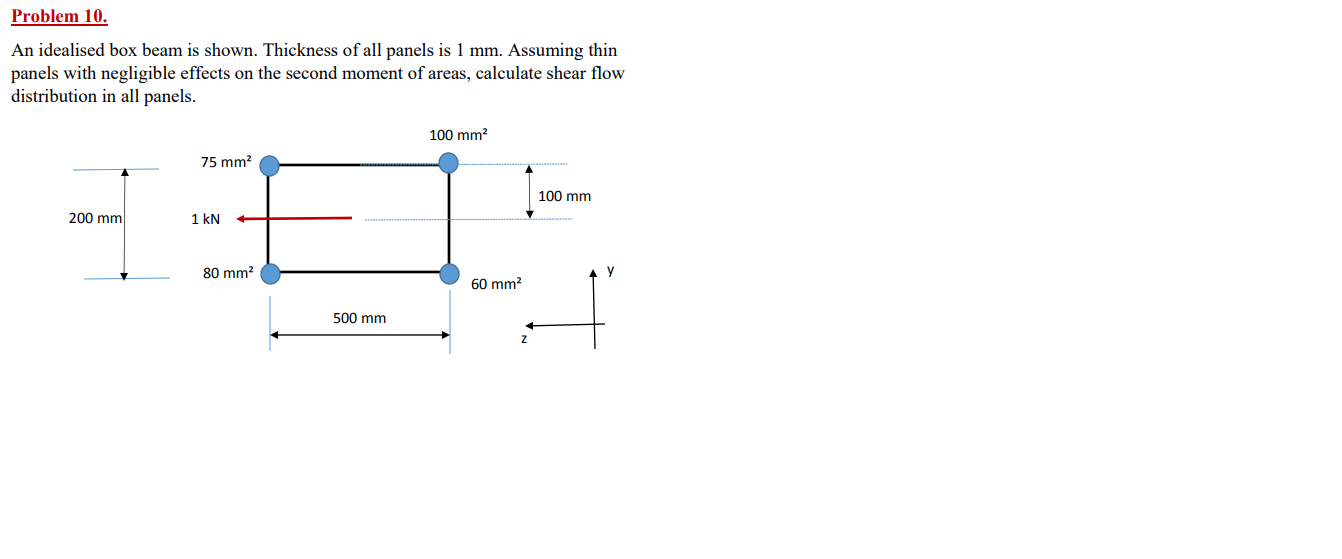

Problem 10. An idealised box beam is shown. Thickness of all panels is 1 mm. Assuming thin panels with negligible effects on the second moment of areas, calculate shear flow distribution in all panels. 100 mm² 75 mm² 100 mm 200 mm 1 kN 80 mm² 500 mm 60 mm²
