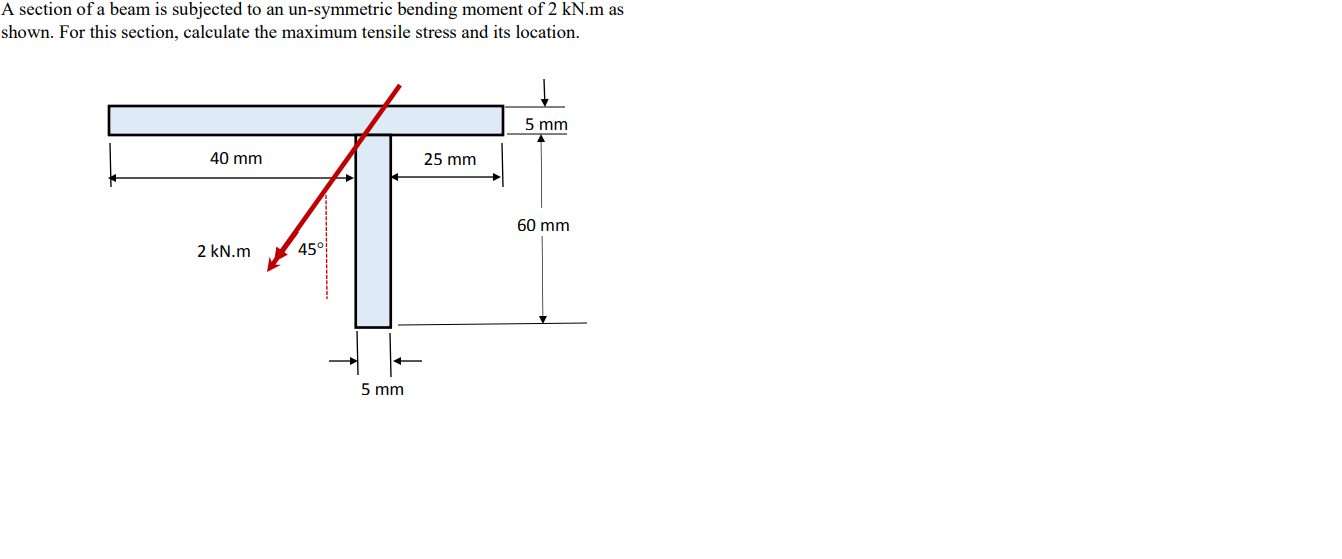

A section of a beam is subjected to an un-symmetric bending
moment of 2 kN.m as shown. For this section, calculate the maximum
tensile stress and its location.
A Section Of A Beam Is Subjected To An Un Symmetric Bending Moment Of 2 Kn M As Shown For This Section Calculate The M 1
A Section Of A Beam Is Subjected To An Un Symmetric Bending Moment Of 2 Kn M As Shown For This Section Calculate The M 1 (28.16 KiB) Viewed 15 times
A section of a beam is subjected to an un-symmetric bending moment of 2 kN.m as shown. For this section, calculate the maximum tensile stress and its location. 5 mm 40 mm 25 mm 60 mm 2 kN.m 45° 5 mm
