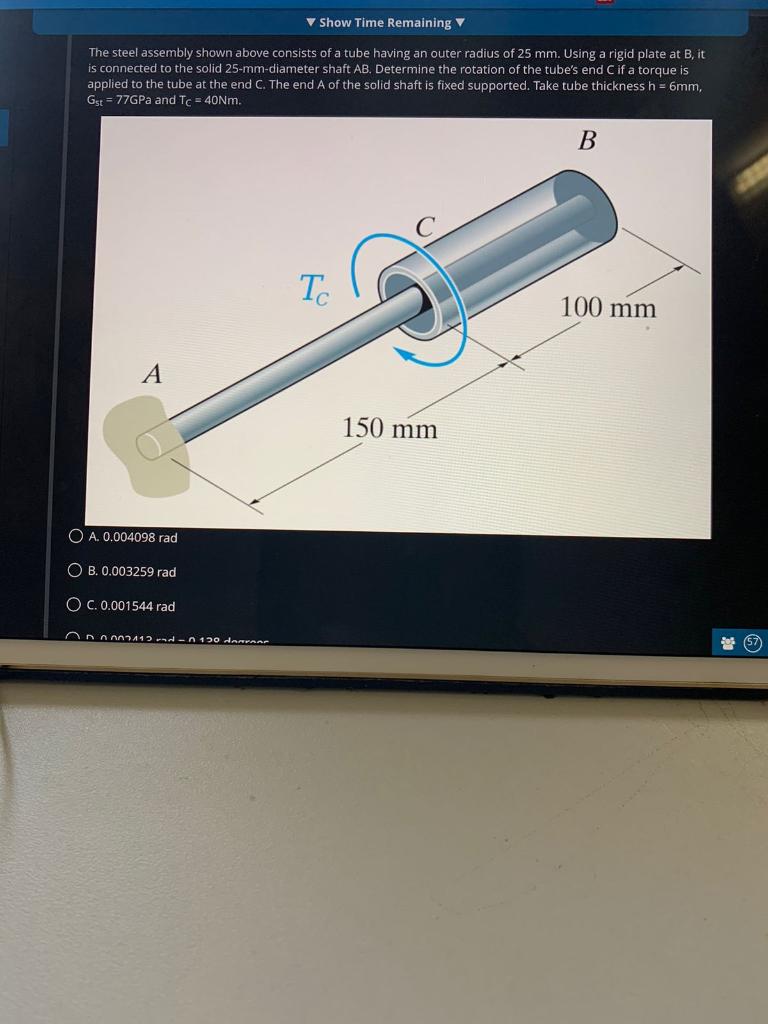

Show Time Remaining ▼ The steel assembly shown above consists of a tube having an outer radius of 25 mm. Using a rigid plate at B, it is connected to the solid 25-mm-diameter shaft AB. Determine the rotation of the tube's end C if a torque is applied to the tube at the end C. The end A of the solid shaft is fixed supported. Take tube thickness h = 6mm, Gst = 77GPa and Tc = 40Nm. B Tc 100 mm ॐ A OA. 0.004098 rad OB. 0.003259 rad C. 0.001544 rad 007112 and 130 PAAF 150 mm 05 (57)
