Force N B Force O Force M Force R 8m 3.5m 4.25m 6.5m 9.5m 8m The parallel force system shown above has the value of its

[answerhappygod]

Force N B Force O Force M Force R 8m 3 5m 4 25m 6 5m 9 5m 8m The Parallel Force System Shown Above Has The Value Of Its 1 (370.91 KiB) Viewed 10 times

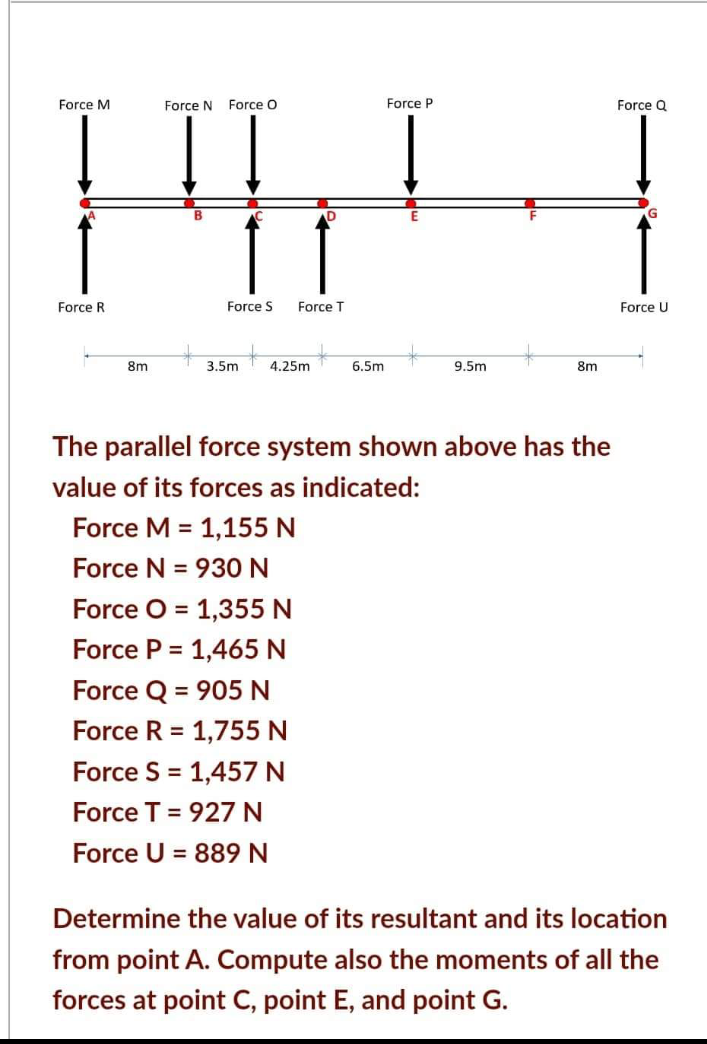

Force N B Force O Force M Force R 8m 3.5m 4.25m 6.5m 9.5m 8m The parallel force system shown above has the value of its forces as indicated: Force M = 1,155 N Force N = 930 N Force O = 1,355 N Force P= 1,465 N Force Q = 905 N Force R = 1,755 N Force S= 1,457 N Force T = 927 N Force U = 889 N Determine the value of its resultant and its location from point A. Compute also the moments of all the forces at point C, point E, and point G. Force S Force P D Force T Force Q Force U
