Provide the sectional front view, looking at the direction X, draw the top view, and right-side view of the object using
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Provide the sectional front view, looking at the direction X, draw the top view, and right-side view of the object using

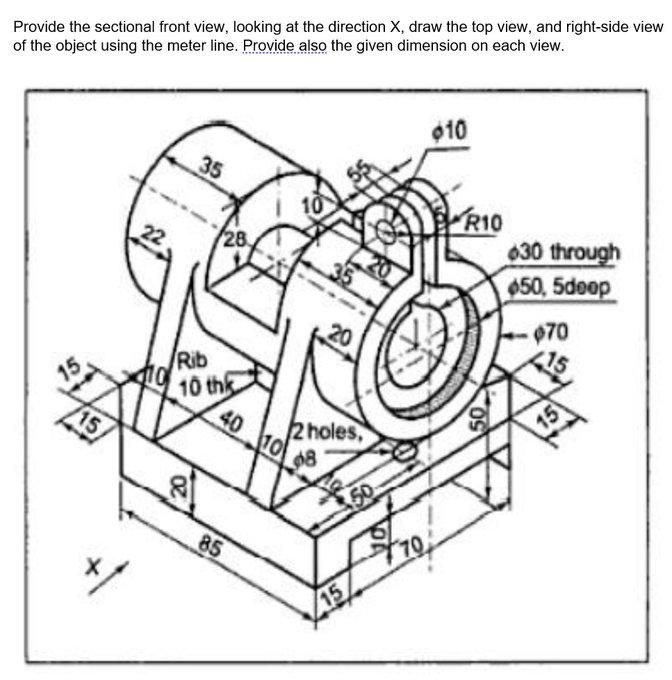

Provide the sectional front view, looking at the direction X, draw the top view, and right-side view of the object using the meter line. Provide also the given dimension on each view. $10 35 10 15 xx /28 Rib 10 th 20 40 85 10 2 holes, 08 15 PA R10 50 630 through $50, 5deep $70 15
