Provide the sectional front view, looking at the direction X, draw the top view, and right-side view of the object using

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Provide the sectional front view, looking at the direction X, draw the top view, and right-side view of the object using

Post by answerhappygod »

Provide The Sectional Front View Looking At The Direction X Draw The Top View And Right Side View Of The Object Using 1
Provide The Sectional Front View Looking At The Direction X Draw The Top View And Right Side View Of The Object Using 1 (60.46 KiB) Viewed 7 times

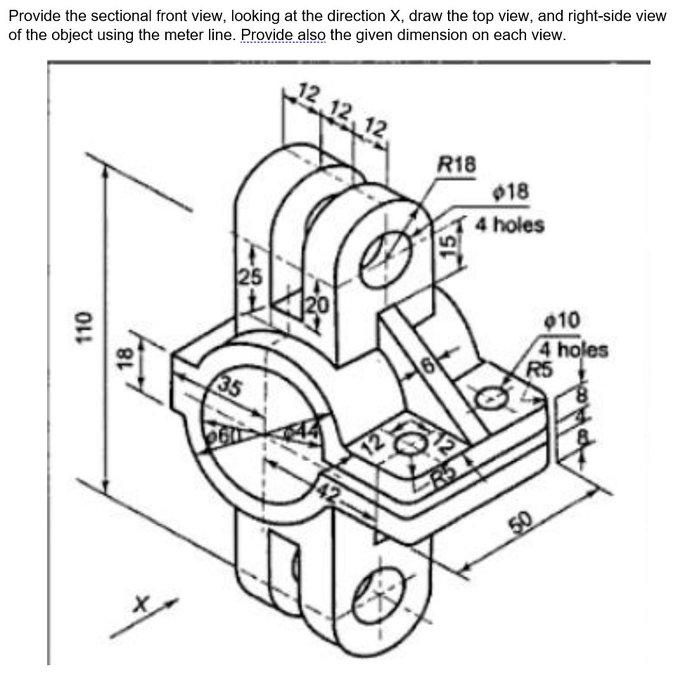

Provide the sectional front view, looking at the direction X, draw the top view, and right-side view of the object using the meter line. Provide also the given dimension on each view. 12.12, 12, R18 110 18 25 35 15 $18 4 holes R51 910 4 holes R5 50
