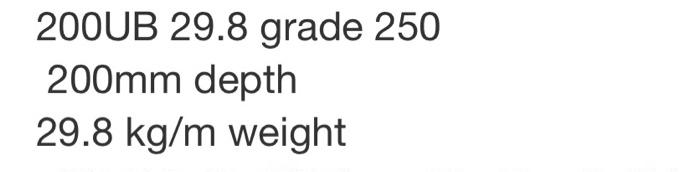

200UB 29.8 grade 250 200mm depth 29.8 kg/m weight

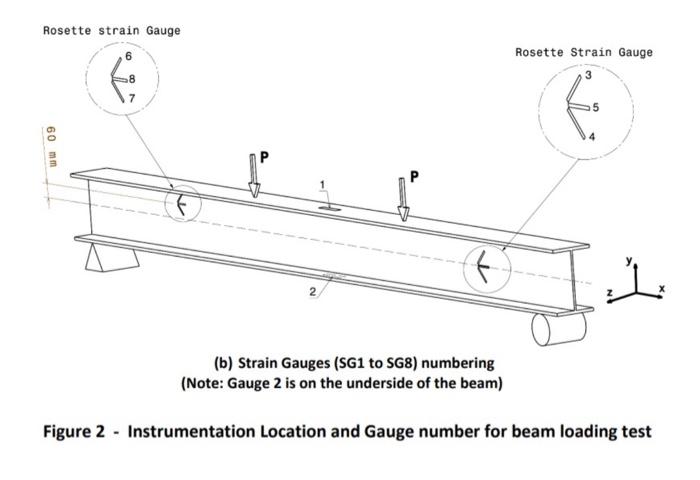

Rosette strain Gauge 60 mm P Rosette Strain Gauge 3 G f (b) Strain Gauges (SG1 to SG8) numbering (Note: Gauge 2 is on the underside of the beam) Figure 2 Instrumentation Location and Gauge number for beam loading test ملُ
Strain gauge rosette located 60mm up from beam centreline 320 mm. 850 mm Load cell on Amsler Testing Machine 2P↓ Spreader beam Measurement of midspan deflection 850 mm Web stiffener Longitudinal strain gauges top and bottom Strain gauge rosettes on beam centreline 320 mm 850 mm

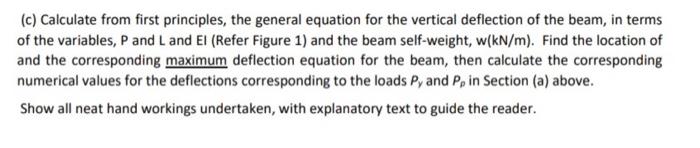

(c) Calculate from first principles, the general equation for the vertical deflection of the beam, in terms of the variables, P and L and El (Refer Figure 1) and the beam self-weight, w(kN/m). Find the location of and the corresponding maximum deflection equation for the beam, then calculate the corresponding numerical values for the deflections corresponding to the loads Py and P, in Section (a) above. Show all neat hand workings undertaken, with explanatory text to guide the reader.

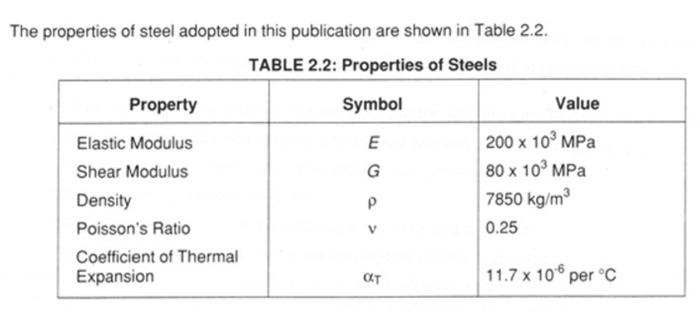

The properties of steel adopted in this publication are shown in Table 2.2. TABLE 2.2: Properties of Steels Property Symbol Value Elastic Modulus E 200 x 10³ MPa Shear Modulus G 80 x 103 MPa Density. P 7850 kg/m³ Poisson's Ratio V 0.25 Coefficient of Thermal Expansion ат 11.7 x 106 per °C

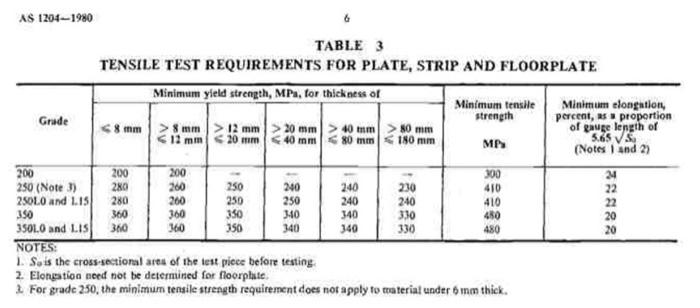

AS 1204-1980 TABLE 3 TENSILE TEST REQUIREMENTS FOR PLATE, STRIP AND FLOORPLATE Minimum yield strength, MPa, for thickness of Minimum tensile strength Grade <8 mm 20 mm 80 mm 8 mm << 12 mm 12 mm 20 mm 40 mm 80 mm 40 mm 180 mm MPs 200 200 200 300 280 260 250 240 240 230 410 250 (Note 3) 25010 and 1.15 280 200 250 250 240 240 410 350 360 360 350 340 340 330 480 35010 and 115 360 360 350 340 340 330 480 NOTES: 1. So is the cross-sectional area of the test piece before testing. 2. Elongation need not be determined for floorplate. 3. For grade 250, the minimum tensile strength requirement does not apply to material under 6 mm thick. AV AV AW Minimum elongation, percent, as a proportion of gauge length of 5.65 S (Notes 1 and 2) 24 22 22 20 20

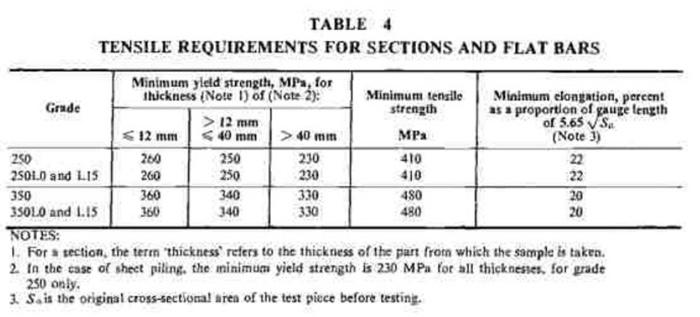

TABLE 4 TENSILE REQUIREMENTS FOR SECTIONS AND FLAT BARS Minimum yield strength, MPa, for thickness (Note 1) of (Note 2): Minimum tensile strength Grade Minimum elongation, percent as a proportion of gauge length of 5.65 Sa > 12 mm 40 mm 12 mm > 40 mm MPa (Note 3) 250 260 250 230 410 22 25010 and LIS 260 250 230 410 22 350 360 340 330 480 20 35010 and 1.15 360 340 330 480 20 NOTES: 1. For a section, the term "thickness' refers to the thickness of the part from which the sample is taken. 2. In the case of sheet piling, the minimum yield strength is 230 MPa for all thicknesses, for grade 250 only. 3. Sa is the original cross-sectional area of the test piece before testing.
