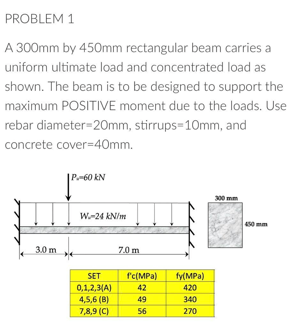

Problem 1 A 300mm By 450mm Rectangular Beam Carries A Uniform Ultimate Load And Concentrated Load As Shown The Beam Is 1 (51.54 KiB) Viewed 5 times
Calculate the ultimate moment capacity of the final section in
kN.m
PROBLEM 1 A 300mm by 450mm rectangular beam carries a uniform ultimate load and concentrated load as shown. The beam is to be designed to support the maximum POSITIVE moment due to the loads. Use rebar diameter=20mm, stirrups=10mm, and concrete cover=40mm. P.-60 kN 300 mm 3.0 m W-24 kN/m SET 0,1,2,3(A) 4,5,6 (B) 7,8,9 (C) 7.0 m f'c(MPa) 42 49 56 fy(MPa) 420 340 270
