Question 5 D a = 10m P = 10 kN E b = 10 m W₁ = 2 kN/m F c = 10 m W₂ = 4 kN/m G (20 marks)

Post by answerhappygod »

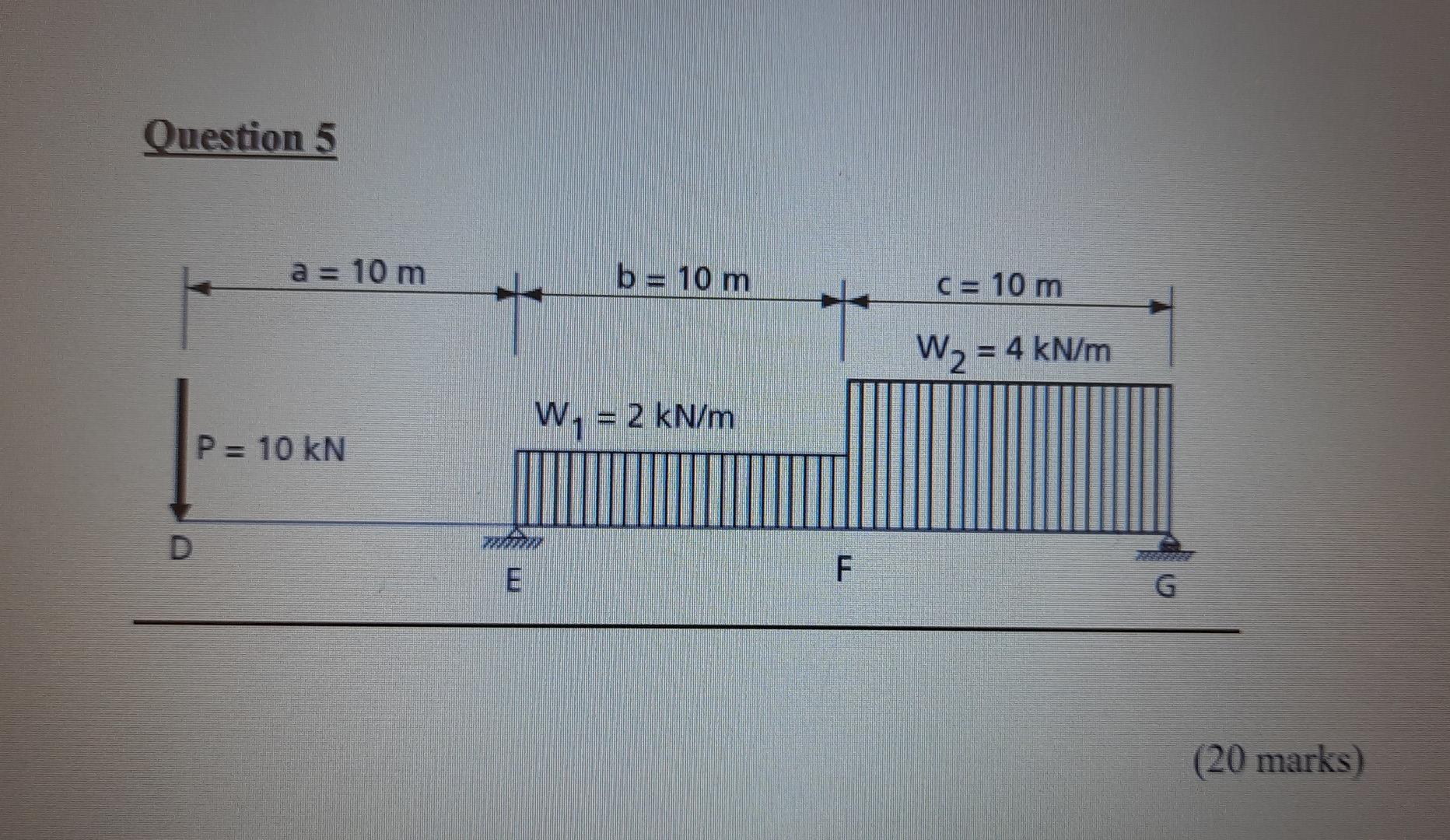

Question 5 D A 10m P 10 Kn E B 10 M W 2 Kn M F C 10 M W 4 Kn M G 20 Marks 1
Question 5 D A 10m P 10 Kn E B 10 M W 2 Kn M F C 10 M W 4 Kn M G 20 Marks 1 (360.11 KiB) Viewed 5 times
For this beam, set up an appropriate equation together with tabular calculations/values to plot the shear force and bending moment diagrams. In addition, indicate the maximum shear force and bending moment for each question.
Question 5 D a = 10m P = 10 kN E b = 10 m W₁ = 2 kN/m F c = 10 m W₂ = 4 kN/m G (20 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
