Question 3 0 2 m 2.4 KN 1 m 1.2 kN 1.5 kN Im T (20 marks)

Post by answerhappygod »

Question 3 0 2 M 2 4 Kn 1 M 1 2 Kn 1 5 Kn Im T 20 Marks 1
Question 3 0 2 M 2 4 Kn 1 M 1 2 Kn 1 5 Kn Im T 20 Marks 1 (509.6 KiB) Viewed 8 times

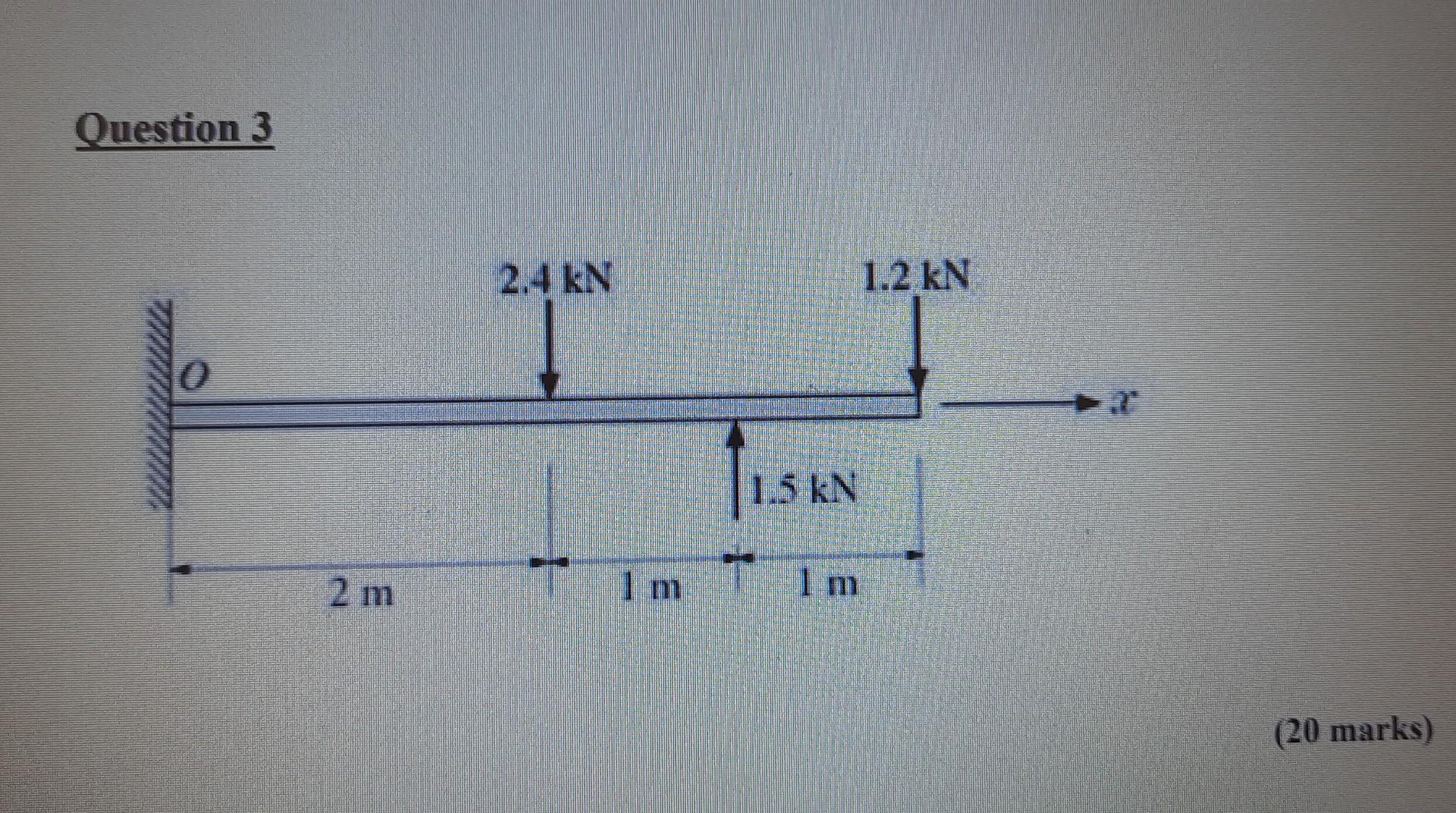

For this beam, set up an appropriate equation together with tabular calculations/values to plot the shear force and bending moment diagrams. In addition, indicate the maximum shear force and bending moment for this question.
Question 3 0 2 m 2.4 KN 1 m 1.2 kN 1.5 kN Im T (20 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
