2. Consider the piping network shown. The pressure heads at points A and B are 80m and 52m, respectively. If the Hazen-W

Post by answerhappygod »

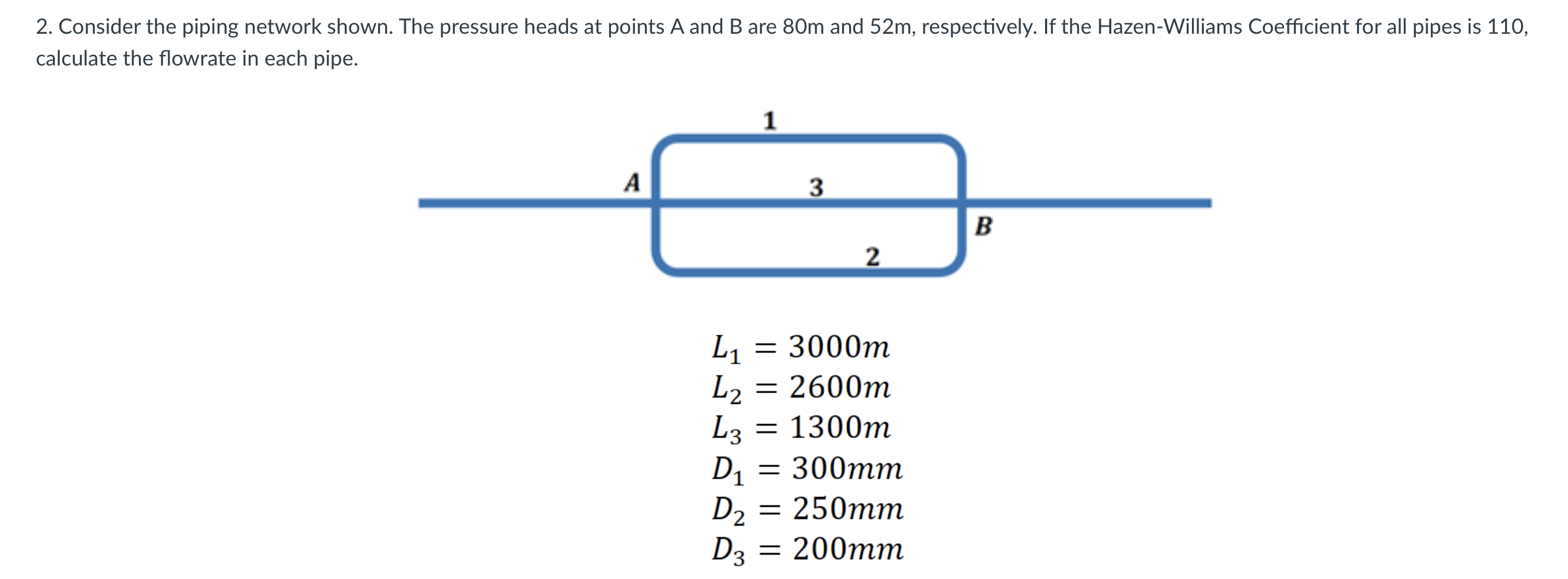

2 Consider The Piping Network Shown The Pressure Heads At Points A And B Are 80m And 52m Respectively If The Hazen W 1
2 Consider The Piping Network Shown The Pressure Heads At Points A And B Are 80m And 52m Respectively If The Hazen W 1 (141.44 KiB) Viewed 8 times
2. Consider the piping network shown. The pressure heads at points A and B are 80m and 52m, respectively. If the Hazen-Williams Coefficient for all pipes is 110, calculate the flowrate in each pipe. 1 A B 3 L₁ 2 = 3000m L2 = 2600m L3 = 1300m D₁ = 300mm D₂ = 250mm D2 D3 = 200mm
