3)A horizontal curve is to be designed for a two-lane road in rolling terrain. The following data are known: Intersectio

Post by answerhappygod »

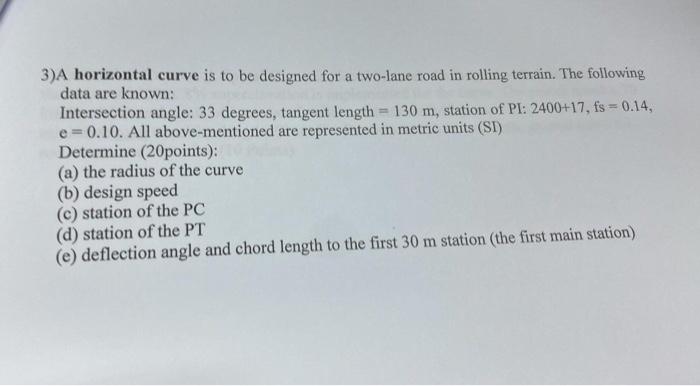

3 A Horizontal Curve Is To Be Designed For A Two Lane Road In Rolling Terrain The Following Data Are Known Intersectio 1
3 A Horizontal Curve Is To Be Designed For A Two Lane Road In Rolling Terrain The Following Data Are Known Intersectio 1 (25.05 KiB) Viewed 17 times
3)A horizontal curve is to be designed for a two-lane road in rolling terrain. The following data are known: Intersection angle: 33 degrees, tangent length 130 m, station of PI: 2400+17, fs = 0.14, e=0.10. All above-mentioned are represented in metric units (SI) Determine (20points): (a) the radius of the curve (b) design speed (c) station of the PC (d) station of the PT (e) deflection angle and chord length to the first 30 m station (the first main station)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
