A venturi meter of 150 x 75 mm size is fixed in a horizontal pipe carrying water. The pressure gauge at entry read 137.3

Post by answerhappygod »

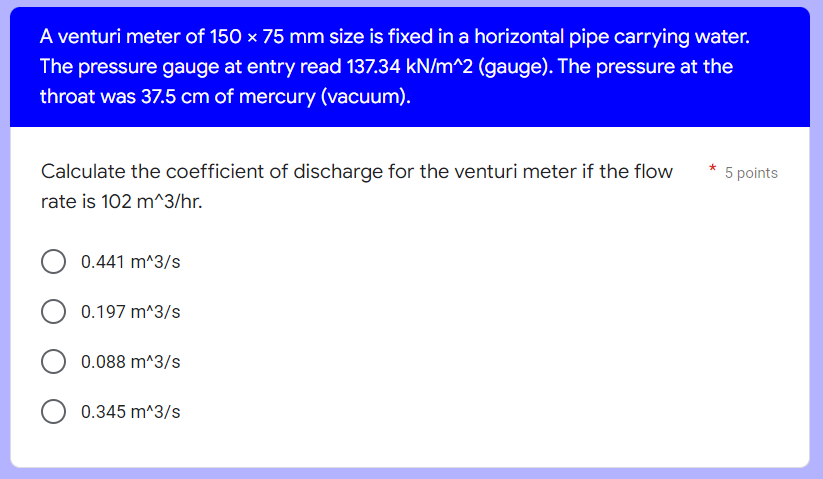

A Venturi Meter Of 150 X 75 Mm Size Is Fixed In A Horizontal Pipe Carrying Water The Pressure Gauge At Entry Read 137 3 1
A Venturi Meter Of 150 X 75 Mm Size Is Fixed In A Horizontal Pipe Carrying Water The Pressure Gauge At Entry Read 137 3 1 (35.16 KiB) Viewed 26 times
A venturi meter of 150 x 75 mm size is fixed in a horizontal pipe carrying water. The pressure gauge at entry read 137.34 kN/m^2 (gauge). The pressure at the throat was 37.5 cm of mercury (vacuum). * 5 points Calculate the coefficient of discharge for the venturi meter if the flow rate is 102 m^3/hr. 0.441 m^3/s 0.197 m^3/s 0.088 m^3/s O 0.345 m^3/s
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
