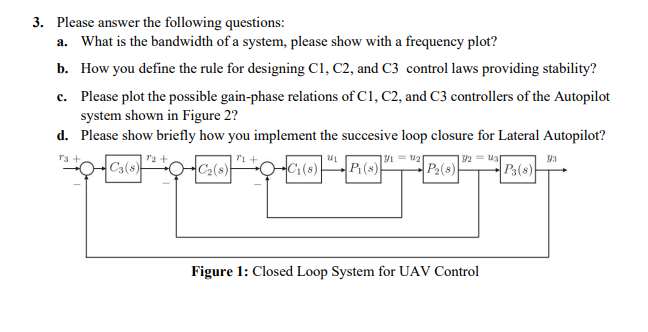

3. Please answer the following questions: a. What is the bandwidth of a system, please show with a frequency plot? b. How you define the rule for designing C1, C2, and C3 control laws providing stability? c. Please plot the possible gain-phase relations of C1, C2, and C3 controllers of the Autopilot system shown in Figure 2? d. Please show briefly how you implement the succesive loop closure for Lateral Autopilot? T3 + 72 + 71 + 261 3/1 3/2= 13) Y3 C3(8) C₂(8) C₁(8). P₁(s) P₂(8) P3(8) Figure 1: Closed Loop System for UAV Control
