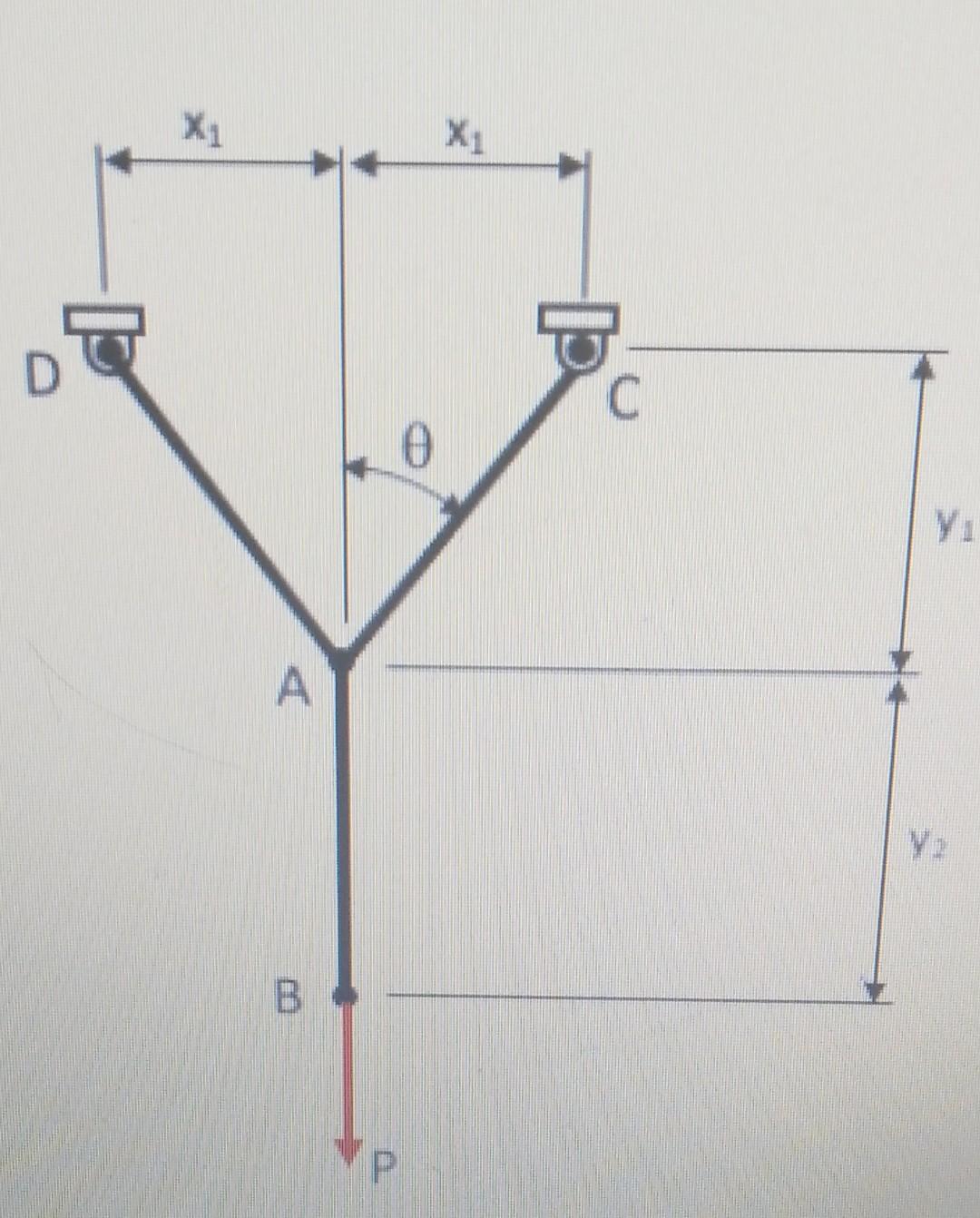

The linkage is made of three pin connected A-36 steel members(E=30MPa), each having a cross sectional area of 457mm^2. x1=929mm, y1=1194mm and y2=1849. If a vertical force P=279kN is applied to the end of B of member AB, determine:
1.The force in member DA
2.The force in member AC
