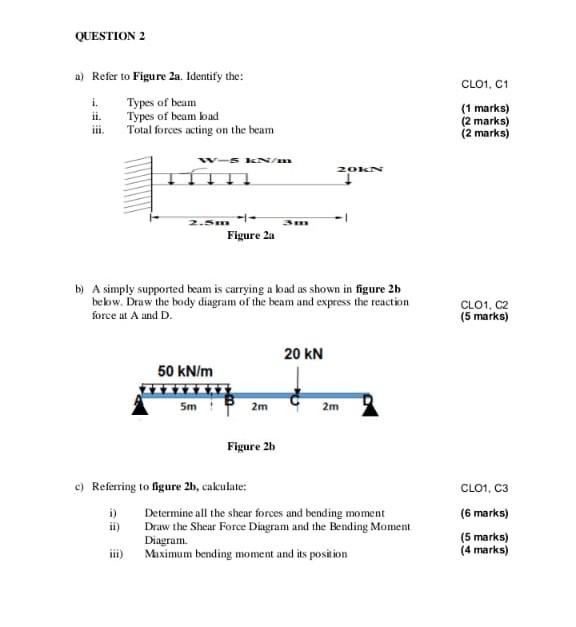

QUESTION 2 a) Refer to Figure 2a. Identify the i. Types of beam Types of beam load iii. Total forces acting on the beam

[answerhappygod]

Question 2 A Refer To Figure 2a Identify The I Types Of Beam Types Of Beam Load Iii Total Forces Acting On The Beam 1 (27.86 KiB) Viewed 6 times

QUESTION 2 a) Refer to Figure 2a. Identify the i. Types of beam Types of beam load iii. Total forces acting on the beam -5 kN/m 20KN 2.5m Figure 2a b) A simply supported beam is carrying a load as shown in figure 2b below. Draw the body diagram of the beam and express the reaction force at A and D. 20 KN 50 kN/m 5m c) Referring to figure 2b, calculate: i) ii) III) 2m 2m Figure 2b Determine all the shear forces and bending moment Draw the Shear Force Diagram and the Bending Moment Diagram. Maximum bending moment and its position CLO1, C1 (1 marks) (2 marks) (2 marks) CLO1, C2 (5 marks) CLO1, C3 (6 marks) (5 marks) (4 marks)
