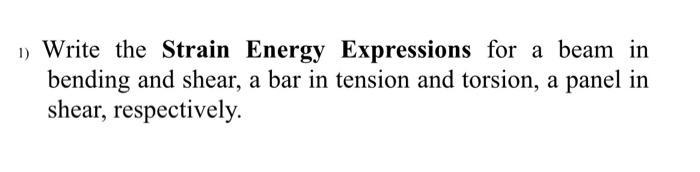

Write the Strain Energy Expressions for a beam in bending and shear, a bar in tension and torsion, a panel in shear, respectively.

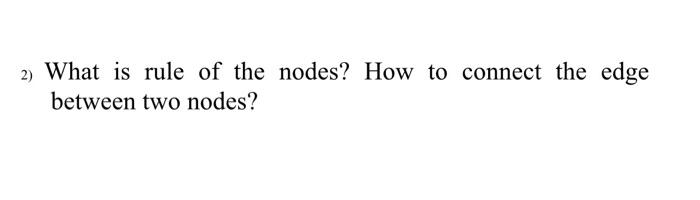

What is rule of the nodes? How to connect the edge between two nodes?

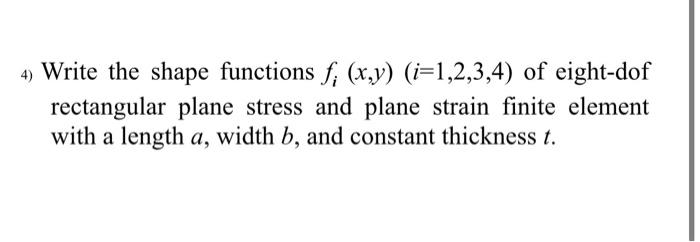

4) Write the shape functions f (x,y) (i=1,2,3,4) of eight-dof rectangular plane stress and plane strain finite element with a length a, width b, and constant thickness t.
