A vertical force P of magnitude 20 kN is applied at point C located on the axis of symmetry of the cross-section of a sh

Post by answerhappygod »

A Vertical Force P Of Magnitude 20 Kn Is Applied At Point C Located On The Axis Of Symmetry Of The Cross Section Of A Sh 1
A Vertical Force P Of Magnitude 20 Kn Is Applied At Point C Located On The Axis Of Symmetry Of The Cross Section Of A Sh 1 (120.52 KiB) Viewed 9 times

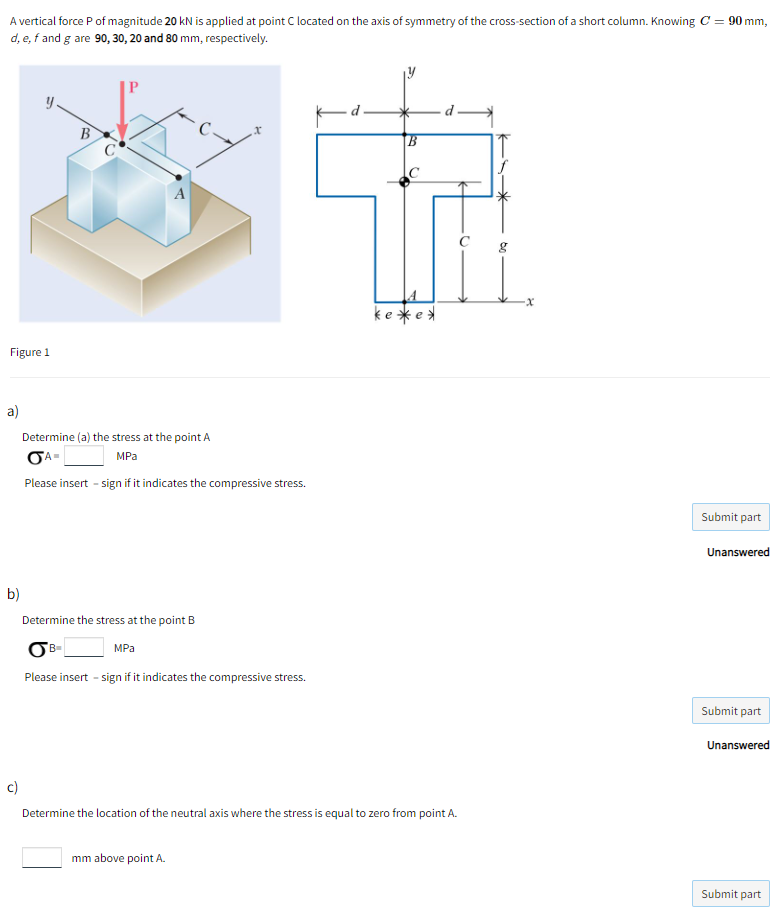

A vertical force P of magnitude 20 kN is applied at point C located on the axis of symmetry of the cross-section of a short column. Knowing C = 90 mm, d, e, f and g are 90, 30, 20 and 80 mm, respectively. P y x B ke*e* Figure 1 B C a) Determine (a) the stress at the point A OA= MPa Please insert - sign if it indicates the compressive stress. b) Determine the stress at the point B B= MPa Please insert - sign if it indicates the compressive stress. c) Determine the location of the neutral axis where the stress is equal to zero from point A. mm above point A. ·x Submit part Unanswered Submit part Unanswered Submit part
