2) Find the deflection v at the midspan of a simply supported beam subjected to a uniformly distributed load w as shown

Post by answerhappygod »

2 Find The Deflection V At The Midspan Of A Simply Supported Beam Subjected To A Uniformly Distributed Load W As Shown 1
2 Find The Deflection V At The Midspan Of A Simply Supported Beam Subjected To A Uniformly Distributed Load W As Shown 1 (24.43 KiB) Viewed 7 times
2 Find The Deflection V At The Midspan Of A Simply Supported Beam Subjected To A Uniformly Distributed Load W As Shown 2
2 Find The Deflection V At The Midspan Of A Simply Supported Beam Subjected To A Uniformly Distributed Load W As Shown 2 (27.86 KiB) Viewed 7 times

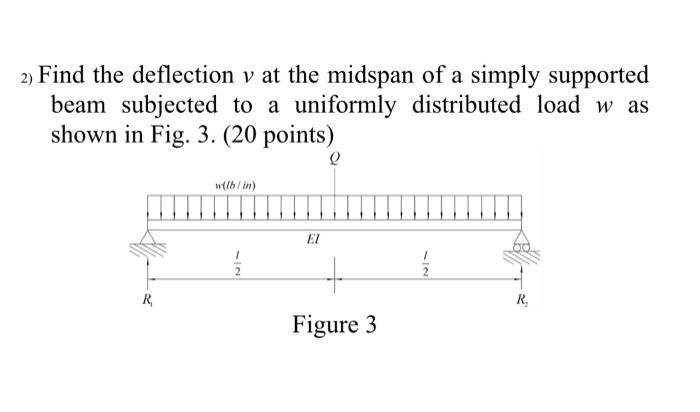

2) Find the deflection v at the midspan of a simply supported beam subjected to a uniformly distributed load w as shown in Fig. 3. (20 points) Q w(lb/in) R₁ R₂ El Figure 3 72

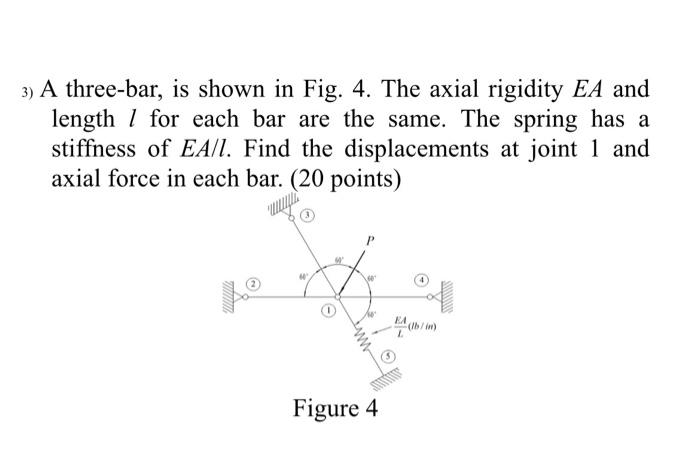

3) A three-bar, is shown in Fig. 4. The axial rigidity EA and length 7 for each bar are the same. The spring has a stiffness of EA/l. Find the displacements at joint 1 and axial force in each bar. (20 points) W www. 100 Figure 4 EA L (lb/in)
