Q5. The mass M is falling at a constant velocity. The pressure P in the hydraulic cylinder is 60 bar, and the volume flo

Post by answerhappygod »

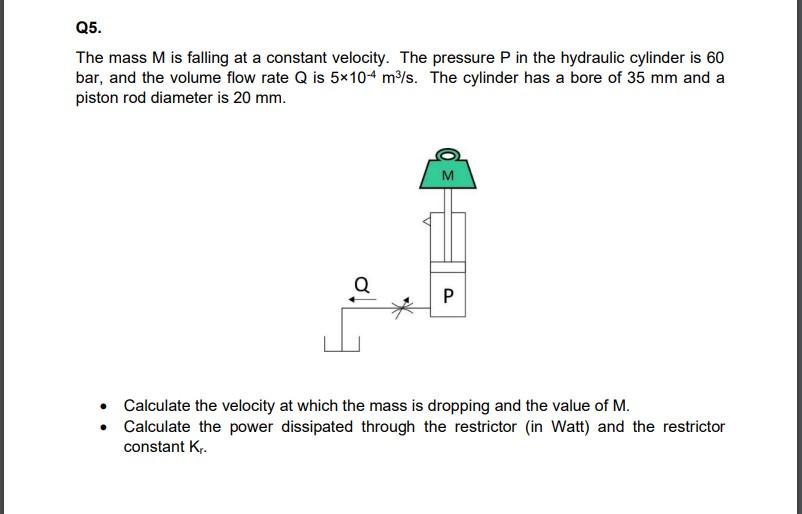

Q5 The Mass M Is Falling At A Constant Velocity The Pressure P In The Hydraulic Cylinder Is 60 Bar And The Volume Flo 1
Q5 The Mass M Is Falling At A Constant Velocity The Pressure P In The Hydraulic Cylinder Is 60 Bar And The Volume Flo 1 (33.06 KiB) Viewed 17 times
Q5. The mass M is falling at a constant velocity. The pressure P in the hydraulic cylinder is 60 bar, and the volume flow rate Q is 5x104 m³/s. The cylinder has a bore of 35 mm and a piston rod diameter is 20 mm. M P Calculate the velocity at which the mass is dropping and the value of M. ● Calculate the power dissipated through the restrictor (in Watt) and the restrictor constant Kr.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
