3. Find Vo(t) in the circuit shown in Figure 3, if the input voltage, v, (t) and H(w) are shown in (1). The Fourier Tran

[answerhappygod]

3 Find Vo T In The Circuit Shown In Figure 3 If The Input Voltage V T And H W Are Shown In 1 The Fourier Tran 1 (422.77 KiB) Viewed 13 times

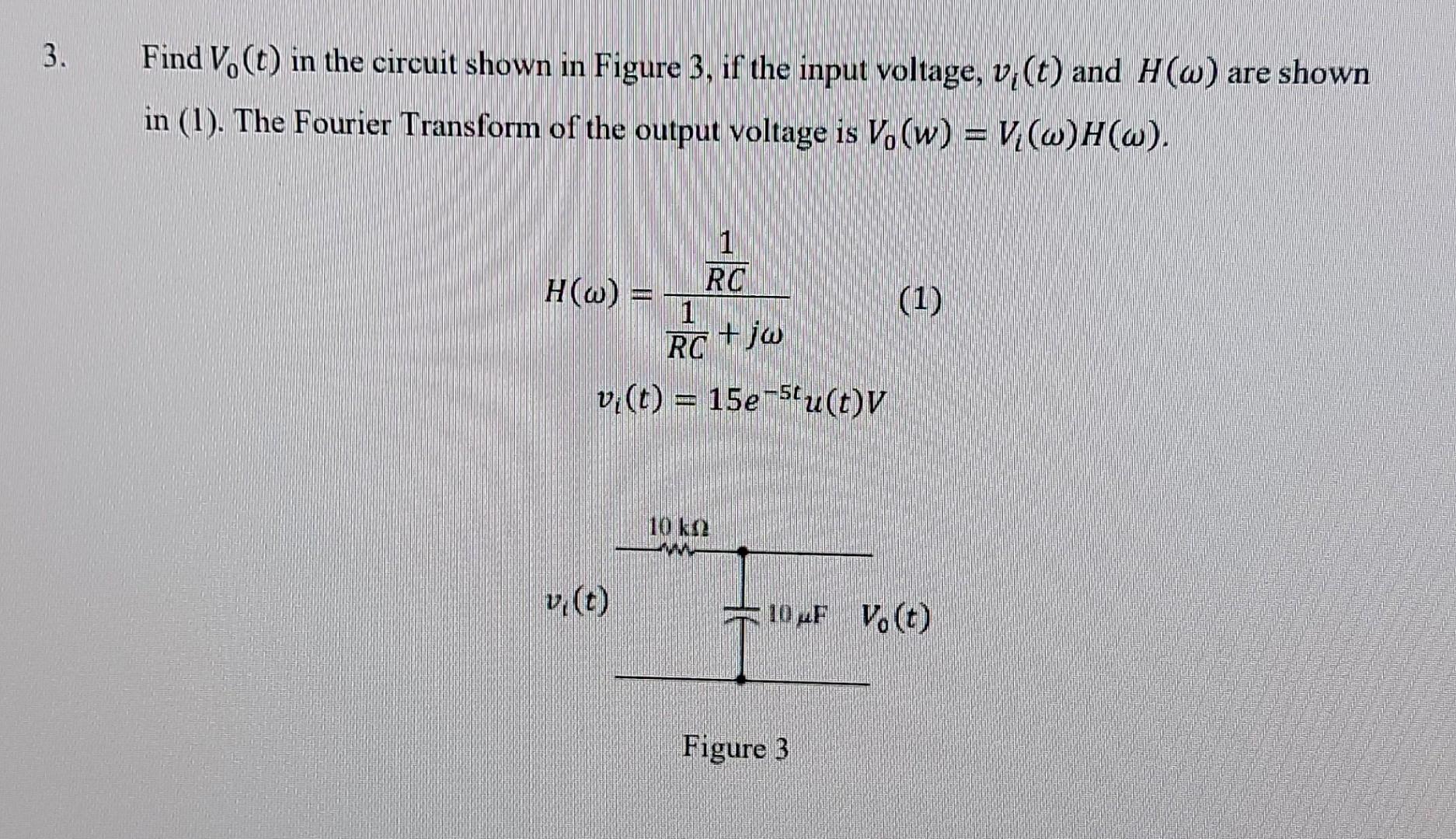

3. Find Vo(t) in the circuit shown in Figure 3, if the input voltage, v, (t) and H(w) are shown in (1). The Fourier Transform of the output voltage is Vo(w) = V₁(w)H(w). 1 RC H(w) = (1) 1 RC + ja jw v₁(t) = 15e-5¹u(t)V 10 k v₁ (t) 10uF Vo(t) Figure 3
