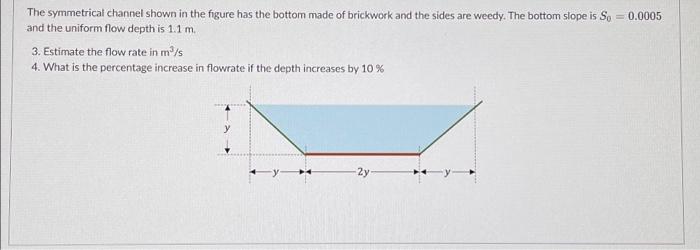

The symmetrical channel shown in the figure has the bottom made of brickwork and the sides are weedy. The bottom slope is So = 0.0005 and the uniform flow depth is 1.1 m. 3. Estimate the flow rate in m³/s 4. What is the percentage increase in flowrate if the depth increases by 10%

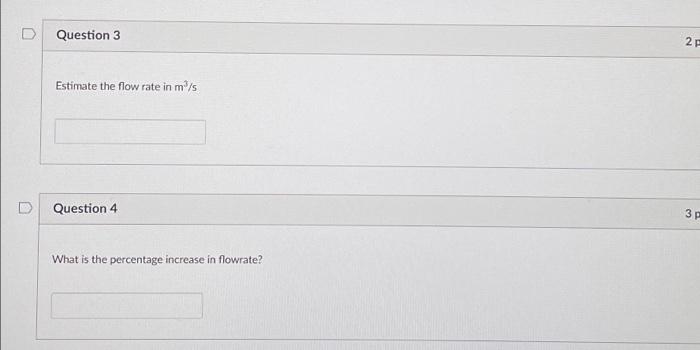

Question 3 Estimate the flow rate in m³/s Question 4 What is the percentage increase in flowrate? 2 p 3 p
