Question 2 (3 marks) In open die forging a cylinder of diameter 125 mm and Length 60mm is compressed with barrelling eff

Post by answerhappygod »

Question 2 3 Marks In Open Die Forging A Cylinder Of Diameter 125 Mm And Length 60mm Is Compressed With Barrelling Eff 1
Question 2 3 Marks In Open Die Forging A Cylinder Of Diameter 125 Mm And Length 60mm Is Compressed With Barrelling Eff 1 (46.82 KiB) Viewed 29 times

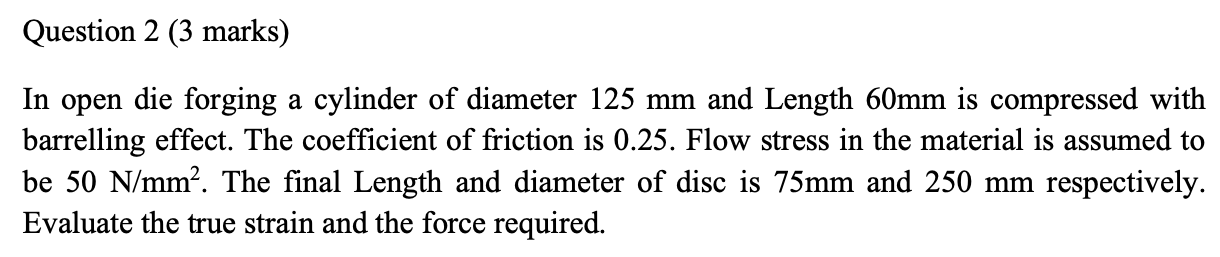

Question 2 (3 marks) In open die forging a cylinder of diameter 125 mm and Length 60mm is compressed with barrelling effect. The coefficient of friction is 0.25. Flow stress in the material is assumed to be 50 N/mm². The final Length and diameter of disc is 75mm and 250 mm respectively. Evaluate the true strain and the force required.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
