Question 7. (6 marks) C clearance 20.1 19.9 B b=15.05 14.95 d = 35.5 35.3 The three parts B,C,D are intended to be easil

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 7. (6 marks) C clearance 20.1 19.9 B b=15.05 14.95 d = 35.5 35.3 The three parts B,C,D are intended to be easil

Post by answerhappygod »

Question 7 6 Marks C Clearance 20 1 19 9 B B 15 05 14 95 D 35 5 35 3 The Three Parts B C D Are Intended To Be Easil 1
Question 7 6 Marks C Clearance 20 1 19 9 B B 15 05 14 95 D 35 5 35 3 The Three Parts B C D Are Intended To Be Easil 1 (40.65 KiB) Viewed 17 times

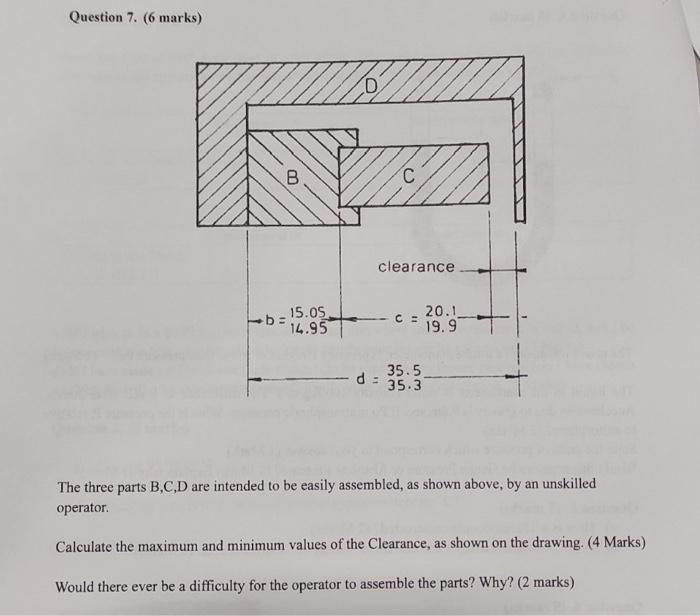

Question 7. (6 marks) C clearance 20.1 19.9 B b=15.05 14.95 d = 35.5 35.3 The three parts B,C,D are intended to be easily assembled, as shown above, by an unskilled operator. Calculate the maximum and minimum values of the Clearance, as shown on the drawing. (4 Marks) Would there ever be a difficulty for the operator to assemble the parts? Why? (2 marks)
