Question 5 Not yet answered Marked out of 4.00 Flag question A pulley and two blocks A and B are connected by inextensib

[answerhappygod]

Question 5 Not Yet Answered Marked Out Of 4 00 Flag Question A Pulley And Two Blocks A And B Are Connected By Inextensib 1 (59.97 KiB) Viewed 15 times

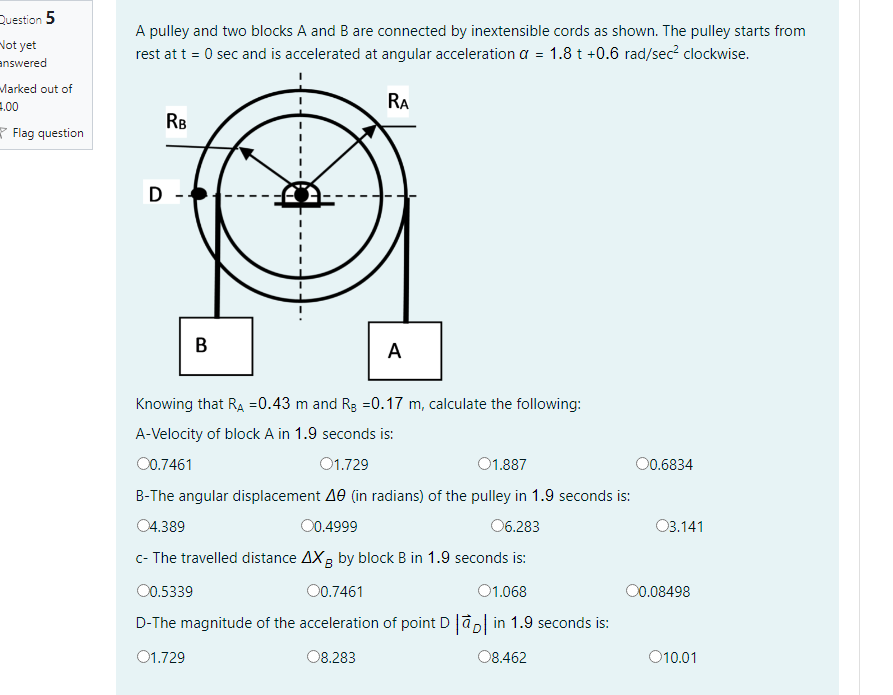

Question 5 Not yet answered Marked out of 4.00 Flag question A pulley and two blocks A and B are connected by inextensible cords as shown. The pulley starts from rest at t = 0 sec and is accelerated at angular acceleration a = 1.8 t +0.6 rad/sec² clockwise. RA RB D- B A Knowing that RA =0.43 m and Rg =0.17 m, calculate the following: A-Velocity of block A in 1.9 seconds is: O0.7461 01.729 O1.887 B-The angular displacement A0 (in radians) of the pulley in 1.9 seconds is: 04.389 00.4999 06.283 c- The travelled distance AX by block B in 1.9 seconds is: B O0.5339 O0.7461 01.068 D-The magnitude of the acceleration of point D |ao| in 1.9 seconds is: 01.729 08.283 08.462 O0.6834 03.141 00.08498 O10.01
