Draw the shear-force and bending-moment diagrams for the beam shown. Determine the bending moment 0.69 ft to the right o

[answerhappygod]

Draw The Shear Force And Bending Moment Diagrams For The Beam Shown Determine The Bending Moment 0 69 Ft To The Right O 1 (20.59 KiB) Viewed 13 times

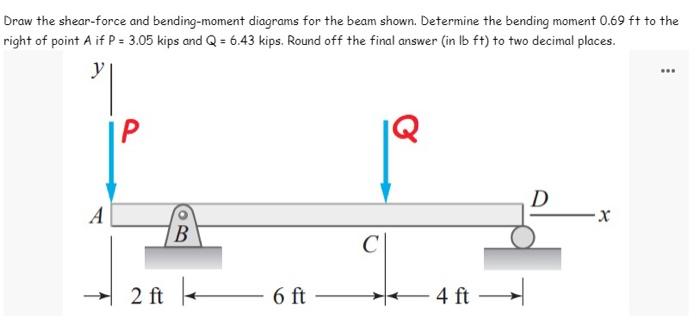

Draw the shear-force and bending-moment diagrams for the beam shown. Determine the bending moment 0.69 ft to the right of point A if P = 3.05 kips and Q = 6.43 kips. Round off the final answer (in lb ft) to two decimal places. y www IP D C A 2 ft B 6 ft - 4 ft →→→→
