PROJECT 11 Analog Filter: Write a MATLAB program of an analog filter that has s-plane poles at -4 and -2+j4, zeros at +j

Post by answerhappygod »

Project 11 Analog Filter Write A Matlab Program Of An Analog Filter That Has S Plane Poles At 4 And 2 J4 Zeros At J 1
Project 11 Analog Filter Write A Matlab Program Of An Analog Filter That Has S Plane Poles At 4 And 2 J4 Zeros At J 1 (28.59 KiB) Viewed 14 times
Project 11 Analog Filter Write A Matlab Program Of An Analog Filter That Has S Plane Poles At 4 And 2 J4 Zeros At J 2
Project 11 Analog Filter Write A Matlab Program Of An Analog Filter That Has S Plane Poles At 4 And 2 J4 Zeros At J 2 (17.61 KiB) Viewed 14 times

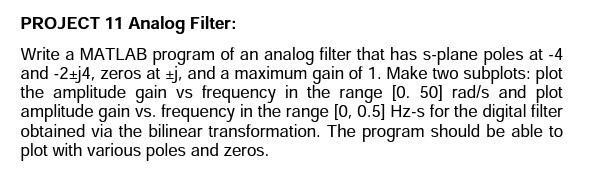

PROJECT 11 Analog Filter: Write a MATLAB program of an analog filter that has s-plane poles at -4 and -2+j4, zeros at +j, and a maximum gain of 1. Make two subplots: plot the amplitude gain vs frequency in the range [0. 50] rad/s and plot amplitude gain vs. frequency in the range [0, 0.5] Hz-s for the digital filter obtained via the bilinear transformation. The program should be able to plot with various poles and zeros.

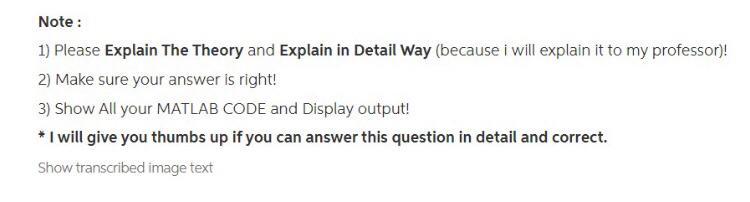

Note: 1) Please Explain The Theory and Explain in Detail Way (because i will explain it to my professor)! 2) Make sure your answer is right! 3) Show All your MATLAB CODE and Display output! * I will give you thumbs up if you can answer this question in detail and correct. Show transcribed image text
