in the circuit in Figure 9 the transformer is ideal, and the circuit operates in steady state condition. Find the curren

Post by answerhappygod »

In The Circuit In Figure 9 The Transformer Is Ideal And The Circuit Operates In Steady State Condition Find The Curren 1
In The Circuit In Figure 9 The Transformer Is Ideal And The Circuit Operates In Steady State Condition Find The Curren 1 (24.99 KiB) Viewed 11 times

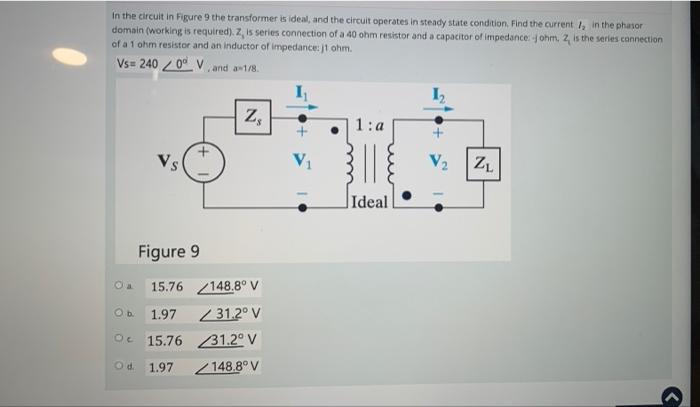

in the circuit in Figure 9 the transformer is ideal, and the circuit operates in steady state condition. Find the current I, in the phasor domain (working is required). Z, is series connection of a 40 ohm resistor and a capacitor of impedance: -johm, 2, is the series connection of a 1 ohm resistor and an inductor of impedance: j1 ohm. Vs= 2400V, and a-1/8. Z₂ 1:a || ZL Ideal Figure 9 O a 15.76 Ob 1.97 Oc 15.76 Od 1.97 148.8° V 31.2⁰ V 31.2⁰ V 148,8° V
